Overview

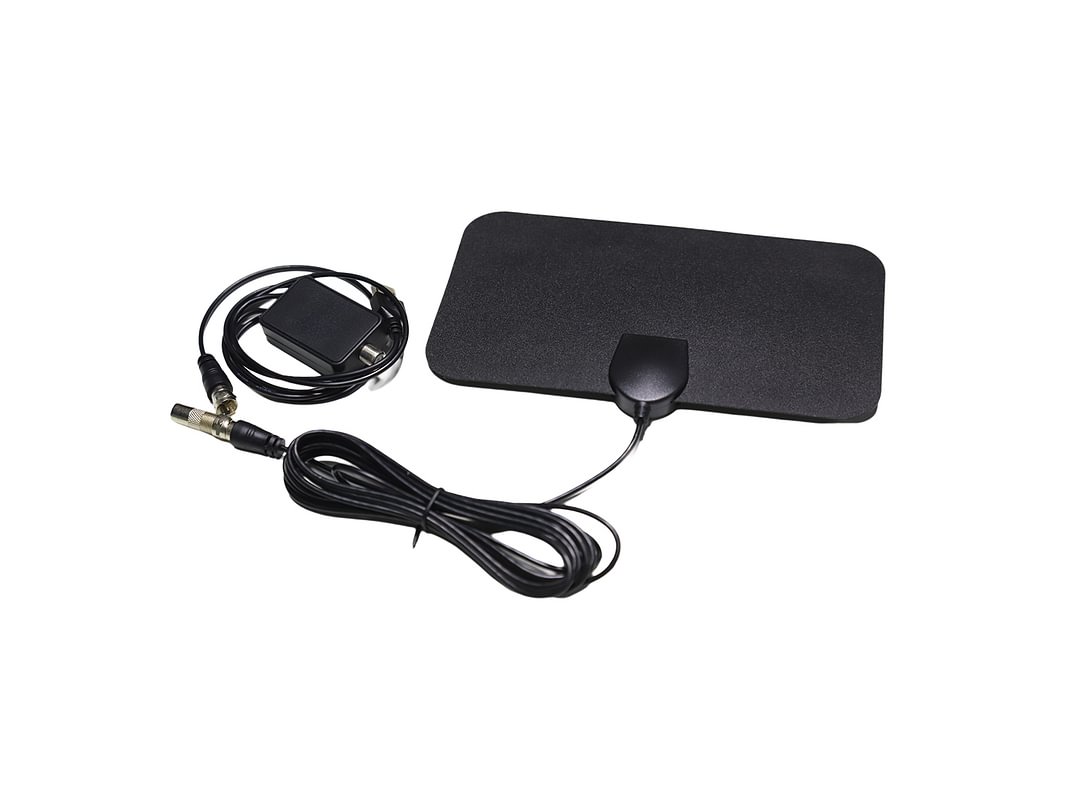

This TV antenna is a thin film antenna designed for indoor use, with an innovative flat and ultra-thin design. Its operating frequency range covers 174-240MHz, 470-862MHz, can receive high-definition digital TV signals, and has the characteristics of high gain and low bit error rate.
Key Features
|
|
|
|
|
|
Innovative design: flat and ultra-thin, beautiful and space-saving. |
High gain and low bit error: strong signal, few bit errors, clear and stable TV picture. |
Multi-directional reception: no need to frequently adjust the direction, no dead angle for signal reception. |
High-definition picture quality: supports 1080p and 4K, clear and realistic picture. |
Specification
| Installation location | Indoors (on the wall, on the table, on the window) |
| Frequency Range | 174-240MHz, 470-862MHz |
| Certification | FCC |
| Gain | 25±3DB |
| VSWR2 | ≤2 |
| Impedance | 75Ω |
| Supported resolution | 1080p, 4K |
| Connector type | F-head with TV adapter |
Applications
Vehicle Antenna
IOT Antenna
