Overview

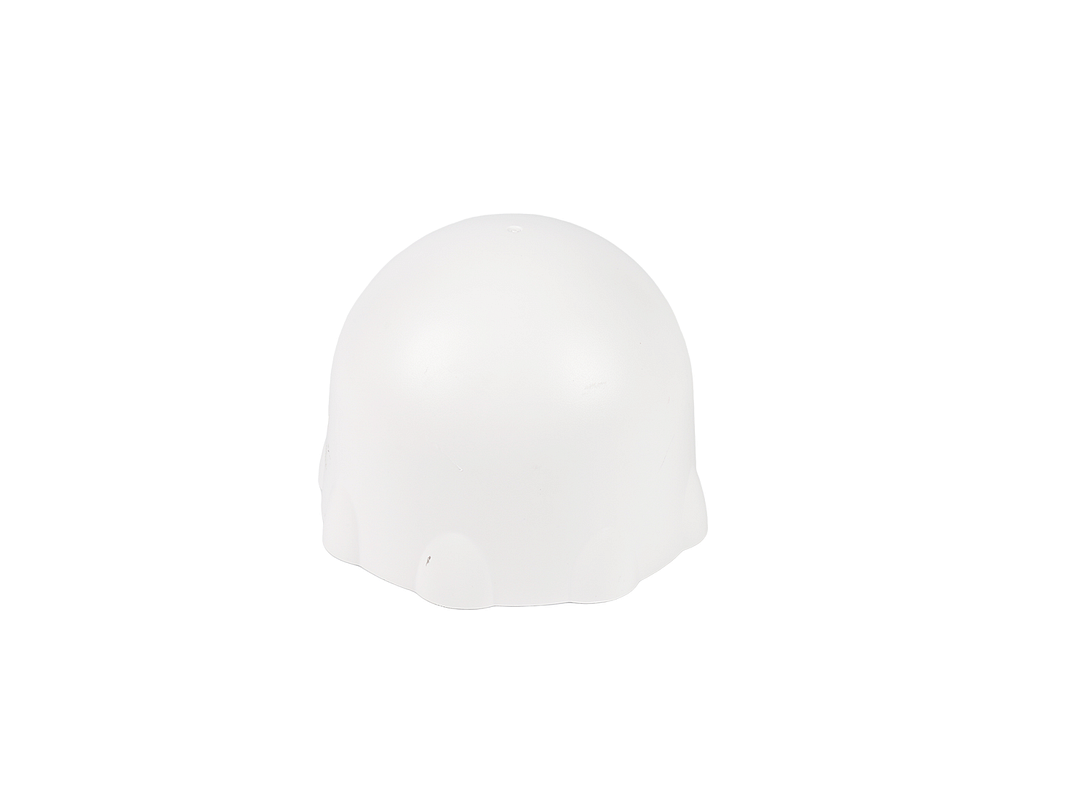

This antenna is a high-performance, multi-band compatible communication antenna, supporting 1980-2010MHz, 2170-2200MHz, 1561MHz and 1575MHz and other frequency bands, its unique design and advanced manufacturing technology, so that the antenna can provide stable signal reception and transmission capability in multiple frequency bands. It is widely used in ship-borne, vehicle-mounted, fixed station and other communication scenarios.
Key Features
|
|
 |
 |
 |
|
Multi-band compatibility: Support 1980-2010MHz, 2170-2200MHz, 1561MHz and 1575MHz multiple bands to meet the requirements of different communication systems and application scenarios.
|
High Gain: LAN Gain 30dB, which can provide stronger signal reception and transmission capability to ensure the stability and reliability of communication.
|
Helical structure:
|
Waterproof and dust-proof: The shell adopts waterproof and dust-proof design, which can work normally in harsh environments. |
Paramete
| Electrical Specification: | |
| Frequency Range(MHz) |
1980-2010MHz，2170-2200MHz |
| Polarization |
(Tiantong) left circular polarization (L) （B1/L1 ）Right-handed circular polarization (L) |
| Gain (dBi)（Tiantong） | Vertex gain ≥2.0dBi |
| Gain (dBi)（Tiantong） | Elevation 40° Minimum ≥2.0dBi |
| Gain (dBi)（B1/L1） | Vertex gain ≥1dBi |
| LNA Gain (dBi) （B1/L1） | 30±2 dB |
| VSR | ≤2 |
| Impedance (Ω) | 50Ω |
| Mechanical specifications : | |
| Dimension (mm) | Φ158mm*124.9mm |
| Connector |
IPEX 1代（Tiantong） |
| Environmental requirement: | |
| Relative Humidity | 95% |
| Operating Temperature (℃) | -30～+65 |
| Store Temperature (℃) | -30～+75 |
Application
It is widely used in ship-borne, vehicle-mounted, fixed station and other communication scenarios.
