Frequency Range: 1561-1575, Gain(dB) :≥3dBi

$1.00 $1.30
0 sold
Single Band Internal ceramic Antenna
Qty 100 in stock

 Overview

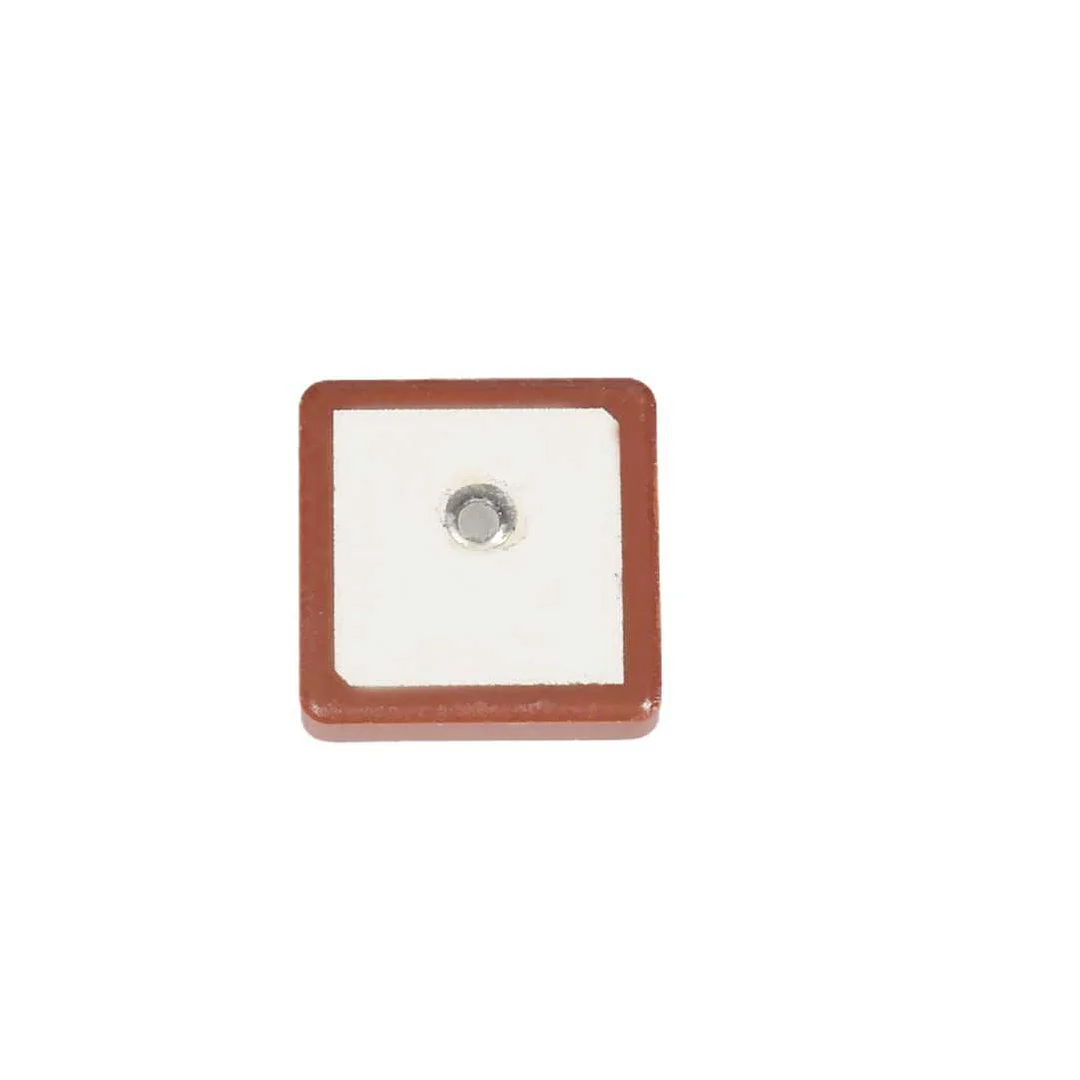

This is a ceramic antenna designed for specific wireless communication needs. It operates at a frequency of 1575MHz ,and is suitable for a variety of wireless communication applications. The antenna is made of high-quality ceramic materials to ensure good stability and durability. Its physical dimensions are 25mm (length) x 25mm (width) x 4mm (height) or 18mm (length) x18mm (width) x 4mm (height) and its compact design enables it to be easily integrated into a variety of small electronic devices.

Key Features



  High temperature resistance and weather resistance

The ceramic material has good high temperature resistance and weather resistance, allowing the antenna to maintain normal operation in harsh environments.

 Good frequency stability

The dual-band built-in ceramic antenna can maintain its operating frequency unchanged over a large temperature range, which is very suitable for high-precision measurement, positioning and other fields.

  Miniaturization and high integration

The dual-band built-in ceramic antenna has a small size and weight, which is easy to install and integrate inside the device, improving the overall aesthetics and portability of the device.

Parameters

Type 1

Dimensions 18mm*18mm*4mm
Frequency 1575±3 MHz
Bandwidth 6MHz min. @S11£-10 dB
In-band standing wave 1.5
Antenna gain 0 dBic(When the grounding surface is 50mm*50mm)
Polarization R.H.C.P.
Axis ratio 3.0 dB Typ.
Operating temperature -40oC to +85oC
Extreme temperature -40oC to +85oC
Relative humidity 10 to 95% RH



Type 2

Dimensions 25mm*25mm*4mm
Frequency 1575±3 MHz
Bandwidth 10MHz min. @S11£-10 dB
In-band standing wave 1.5
Antenna gain 3 dBic(When the grounding surface is 50mm*50mm)
Polarization R.H.C.P.
Axis ratio 3.0 dB Typ.
Operating temperature -40oC to +85oC
Extreme temperature -40oC to +85oC
Relative humidity 10 to 95% RH

Applications

This antenna is suitable for a variety of wireless communication devices

1. GPS navigation system

2. Internet of Things devices:

3. Vehicle communication equipment and remote monitoring equipment:

4. Scooters, shared bicycles
