Overview

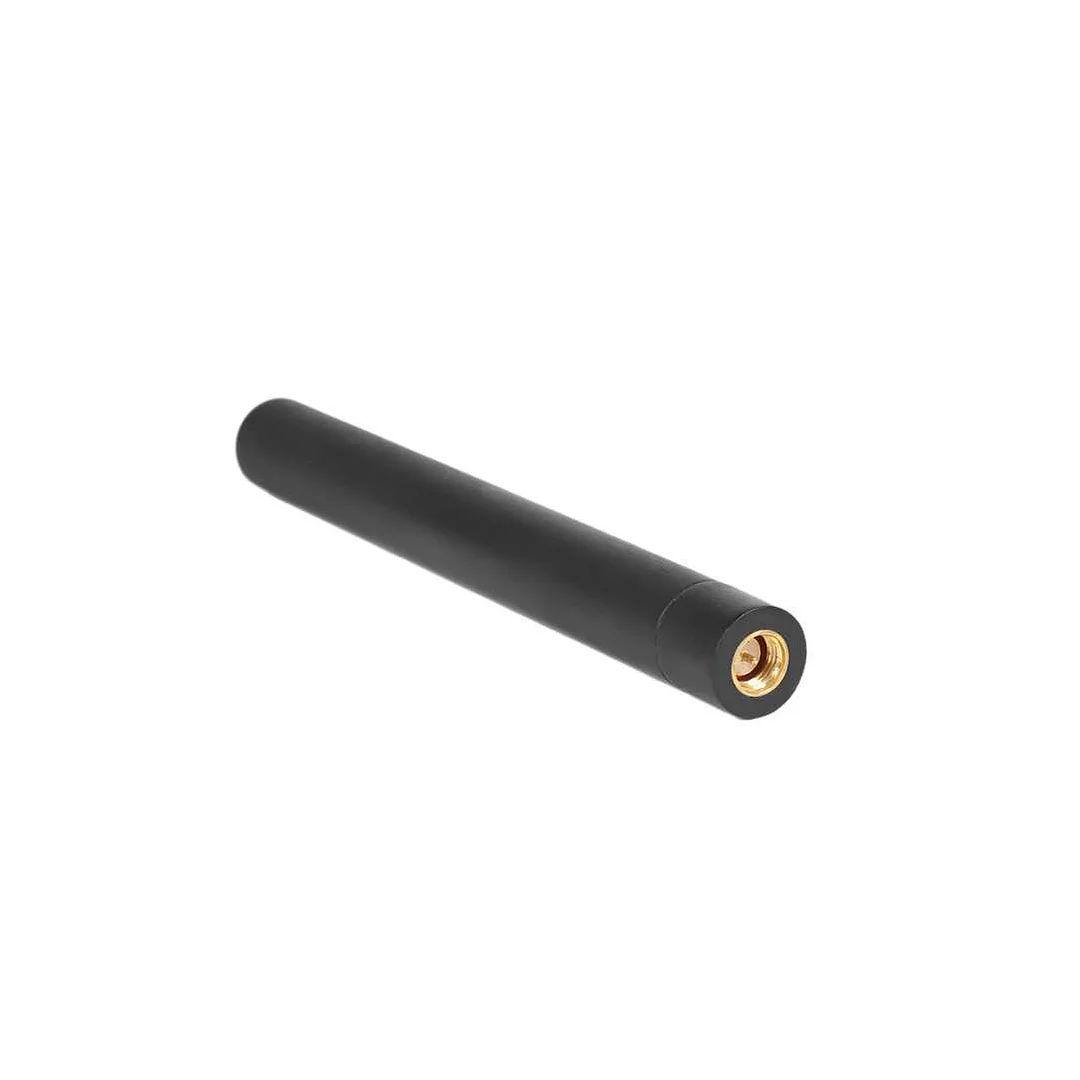

This product is a communication antenna designed for S-band, which is suitable for various wireless communication systems, including terrestrial mobile communication networks and satellite communication systems. Through carefully designed frequency band allocation, it is able to receive signals efficiently in the range of 2.17 to 2.2GHz and transmit signals stably in the range of 1.98 to 2.01GHz, ensuring smooth and reliable communication.The structure features a compact cylindrical design with a diameter of only 13.2mm and a length of 108mm, making it easy to install and integrate into a variety of communication devices. This compact size not only saves space, but also reduces the limitations on the overall design of the device and improves the flexibility of the system.The structure features a compact cylindrical design with a diameter of only 13.2mm and a length of 108mm, making it easy to install and integrate into a variety of communication devices.
Key Features
 |
 |
 |
 |
| High efficiency： requency Range：1980-2010MHz，2170-2200MHz,The antenna has excellent transceiver performance in the S-band, which can ensure the stable transmission of communication signals. |
High gain, wide beam width of directional pattern:good reception effect for low elevation signal, ensuring normal star reception in some occasions with serious occlusion. |
easy installation,
|
Reliability: |
Paramete
| Specification | |
| Frequency Range(MHz) | 1980-2010MHz，2170-2200MHz |
| Polarization |
Left-hand circular polarization (L) |
| Gain (dBi) | Elevation 55° ≥2dBi |
| VSWR | ≤2 |
| Impedance (Ω) |
50(Ω) |
| Dimension (mm) | Φ13mm*108mm |
| Connector | SMA_J |
| Relative Humidity | 95% |
| Operating Temperature (℃) |
-40～+65 |
| Store Temperature (℃) | -40～+75 |
Application
