Overview
The timing antenna is compact in size, covers the GPS and Beidou satellite frequency bands, has a beautiful appearance, and is waterproof, corrosion-resistant, and has good high-temperature resistance. The antenna can work reliably and continuously for a long time and is not affected by the external environment. It plays an important role in intelligent transportation systems and electronic non-stop toll collection systems, and provides a convenient and efficient solution for modern traffic management.
Key Features
 |
 |
 |
| 1.High gain, precise timing： LNA:28DB, strong anti-signal interference |
Small size, strong, waterproof： Able to withstand harsh weather conditions and long-term use |
Strong compatibility：Able to communicate with a variety of on-board units (OBUs) |
Specification

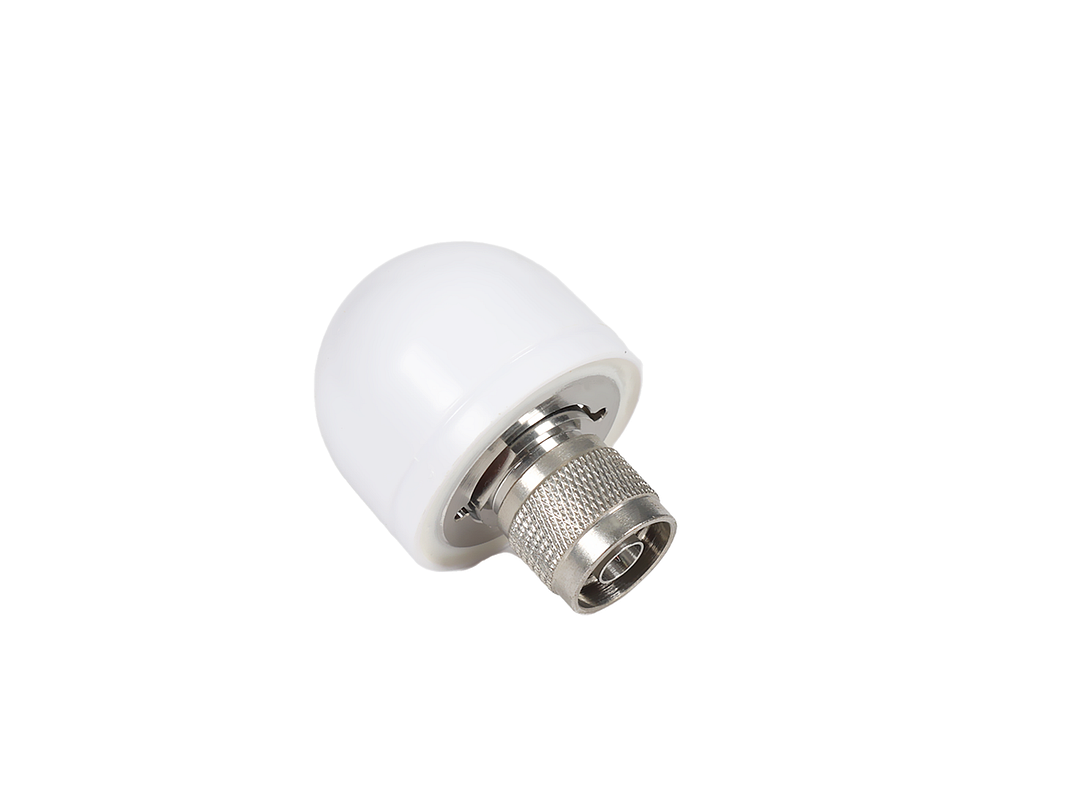

Specification- Type 1
| Frequency Range(MHz) | BD B1（1561.098MHz）、GPS L1（1575.42MHz） |  |
| MHzPolarization | RHCP | |
| LNA Gain(dB) | 28±2 | |
| V.S.W.R | <2.5 | |
| Impedance(Ω) | 50 | |
| Dimensions (mm) | Φ42×57 | |
| Operation Temp. | -40℃ to +75℃ | |
| Connector | N-K | |
| Environment | Outdoor | |
| Waterproof Grade | IP66 |
Specification- Type 2
| Frequency Range(MHz) | BD B1（1561.098MHz）、GPS L1（1575.42MHz） |  |
| Polarization | RHCP | |
| Peak Gain (dBi) | 2 | |
| LNA Gain(dB) | 28±2 | |
| V.S.W.R | ≤2.0 | |
| Dimensions (mm) | Φ42×270 | |
| Operation Temp. | -40℃ to +75℃ | |
| Connector | N-J | |
| Environment | Outdoor | |
| Waterproof Grade | IP66 |
Applications
Vehicle Antenna
IOT Antenna
