Outdoor omni 4g antenna external
Product Overview

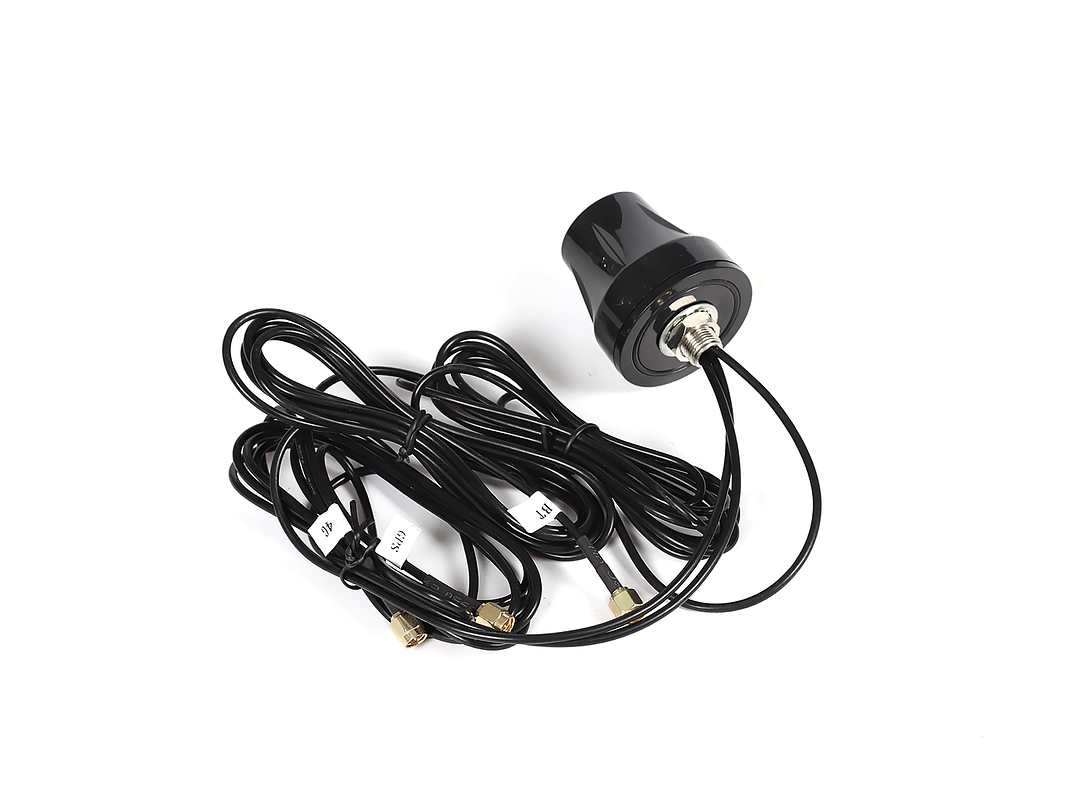

Outdoor omni 4g antenna external
This outdoor 4G antenna covers 4G /820~960Mhz,1710~2690 Mh
It has compact size, and nice appearance, which is widely be used on Vending Machines, Sharing charging pile, vehicles and other smart city & home applications need to have 4G signal.
Frequency of this antenna is customizable, we can offer 4G+GPS+BT/WIFI or other combination frequency design, please contact with sale53@vlg.com.cn.
OEM/ODM are availiable for this antenna. We have an over 100-engineer team is ready to provide support.
Key Features
 |
 |
 |
 |
| Compact Size | Easy Installation | High integration | Wide applicability |
| This antenna has compact size, which can well save the installation space, and make the installation more easily. | This screw mount omnidirectional antenna is easy to install. | This 3-in-1 combination antenna is specially desing for application that require 4G， blue-tooth/wifi connection & GPS positioning function in one devices. | For now, our clients have used this antenna on Vending Machines, Sharing charging pile, vehicles. It can be widely be used on different smart city applications. |
Specification
| 4G Antenna | Wifi/BT Antenna | GPS Antenna | |
| Frequency range: |
820~960,1710~2690 Mhz |
2400-2500 Mhz | 1559-1585 Mhz |
| Impedance: | 50Ω | 50Ω | 50Ω |
| VSWR | ＜3.0 | ＜2.0 | ＜2.0 |
| Gain: | ＜ 4.4dBi | ＜-2.7dBi | ＜0.3dBi |
| Efficiency (Max) | 41% | 20% | 42% |
| Polarization | Linear | Linear | Linear |
Mechanical Specifications
| Size(mm) | ∅46.2*17.7 |
| Connector Type | SMA (Customize) |
| Radome Color | Black |
| Mounting Type | Stud installation |
| Environmental Requirements | |
| Operating temperature | -30℃ ~ +65℃ |
| Storage Temperature | -30℃~75℃ |
