Overview

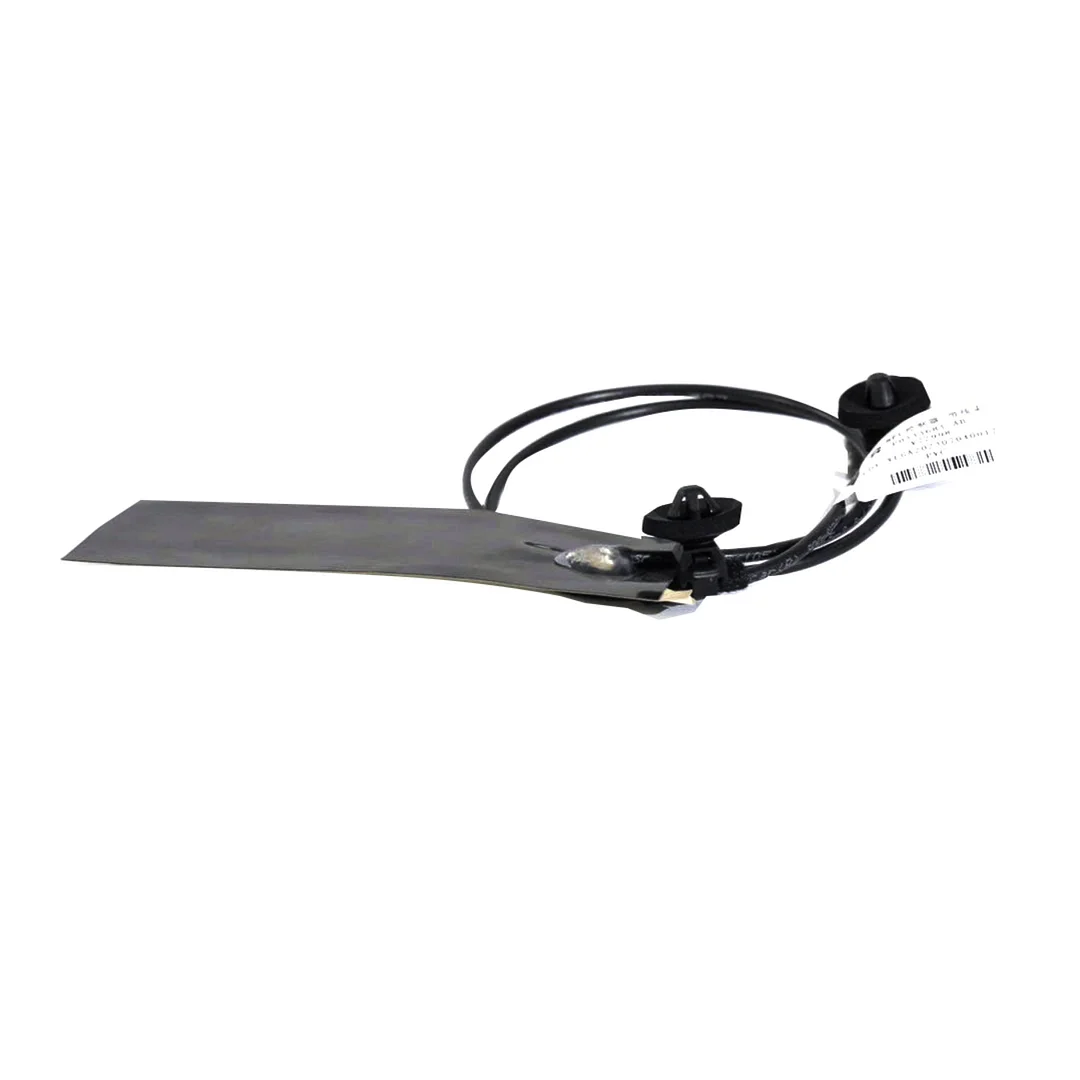

This in-vehicle NFC (Near Field Communication) antenna has an operating frequency of 13.56MHz and is a high-performance antenna designed for vehicle's Key less entry system.
It has a low standing wave ratio (V.S.W.R. <2.0) and a stable impedance (50±3Ω), ensuring efficient and stable communication performance.
Key Features
|
|
|
 |
|
Precise Sensing Double-sided microstrip NFC antenna, superior performance, accurate induction unlock. |
Compact and easy to install Small size, flexible installation, paste in the car outside the rearview mirror inside, B-pillar inside. |
Coaxial cables transmit signals The internal coaxial cable is used to transmit the differential signal to the host to improve the anti-interference ability of the antenna. |
Specification
| Function | NFC |
| Frequency | 13.56MHz |
| V.S.W.R | < 2.0 |
| lmpedance | 50±3Ω |
| Polarization | Linear |
| Environmental Requirements | |
| Operating temperature | -40℃ ~ +85℃ |
| Connector pulling force | ≥80N |
Applications:
This antenna can be widely used in the vehicle’s pre & after market.
