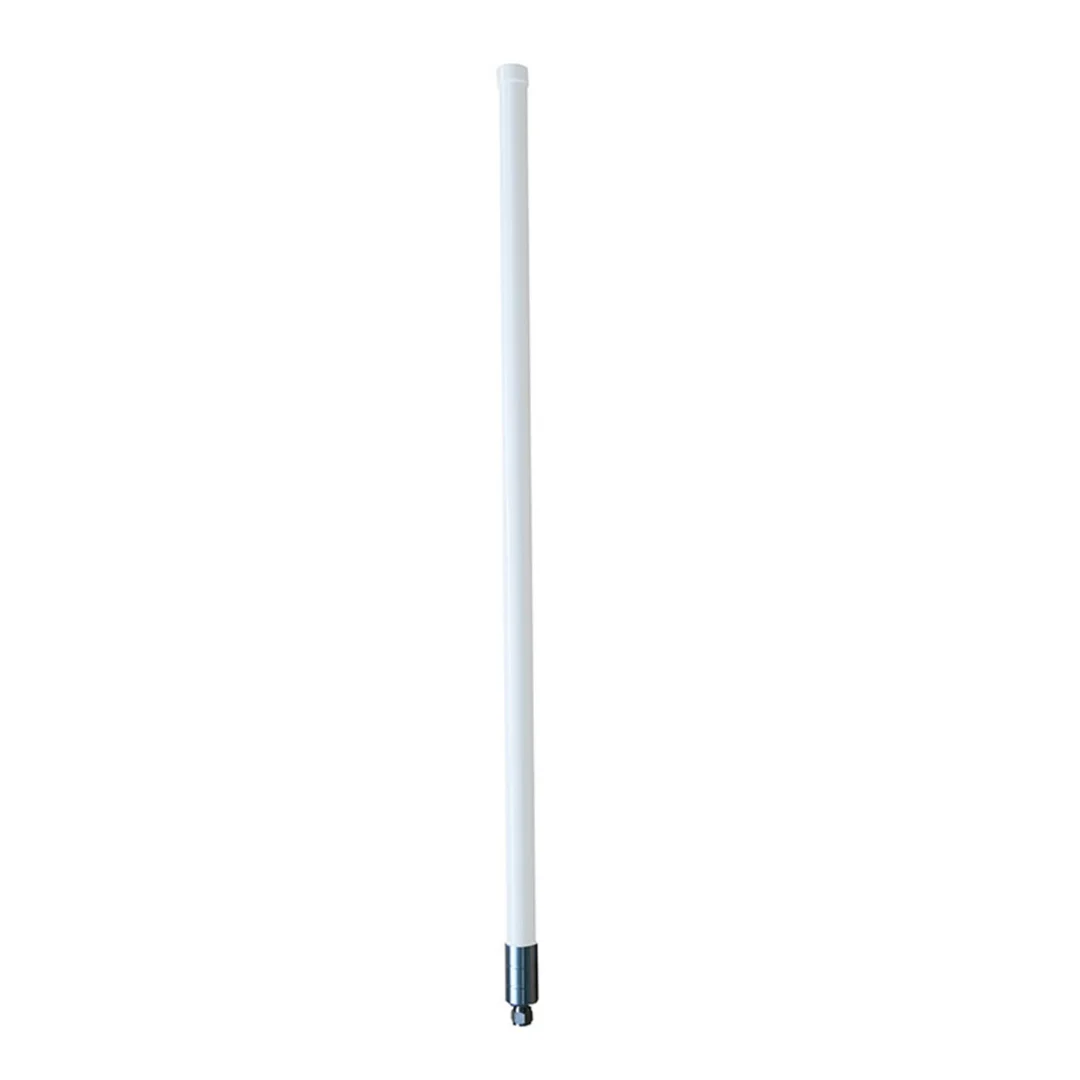

Antenna Advantage
Low VSWR, guranteen the good performance of antenan and good coverage.Fiberglass structure, good water proof for Outdoor Installation.Wide Beamwidth, radiation distance can reach up to 3km.
Key Features
|
|
|
|
|
|
Reliable Communication with Minimized Signal Loss Featuring a low VSWR (Voltage Standing Wave Ratio) of ≤ 3, this antenna minimizes signal loss on the transmission line. This ensures efficient communication and a reliable connection for uninterrupted calls, streaming, and downloads. |
Excellent weather resistance FRP corrosion resistance, UV resistance, anti-aging, impact resistance, can maintain stable performance in extreme temperature difference environment, suitable for a variety of harsh weather conditions, extend the service life of the antenna. |
Light and high strength The high strength and lightweight characteristics of FRP make the antenna structure strong but light weight, easy to install and transport, reducing the burden on the support structure. |
Strong penetration ability LoRa technology can better penetrate buildings and other obstacles, suitable for communication needs in cities and complex environments. |
Parameters
|
Model |
V1468-001-C-04 |
V1799-012-A-01 | V1799-011-A-01 |
|
Frequency |
433MHz |
470-510MHz |
433MHz |
|
Gain |
2±1.0dBi |
5±1dBi |
6±1dBi |
|
Length |
Φ25*546±5.0mm |
Φ25*1200±5.0mm |
Φ25*1300±5.0mm |
| Impedance |
50Ω |
50Ω |
50Ω |
|
VSW |
＜2.0 |
＜2.0 |
＜2.0 |
|
Max. Efficienc |
>75% |
>75% |
>75% |
|
Polarization |
Linear polarization/Vertical |
Linear polarization/Vertical |
Linear polarization/Vertical |
|
Radiation pattern |
Omni-directional |
Omni-directional |
Omni-directional |
|
Connector |
N-J |
N-J |
N-J |
|
Salt Spray Test |
48H |
48H |
48H |
| Operation Temperature |
-30℃~65℃ |
-30℃~65℃ |
-30℃~65℃ |
|
Storage Temperatur |
-30℃~75℃ |
-30℃~75℃ |
-30℃~75℃ |
Installation suggestion
we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.
 |
 |
| Optional connector and accessories are availiable. Please share your requirement with us to get the best offer. | The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments. |
