Product introduction

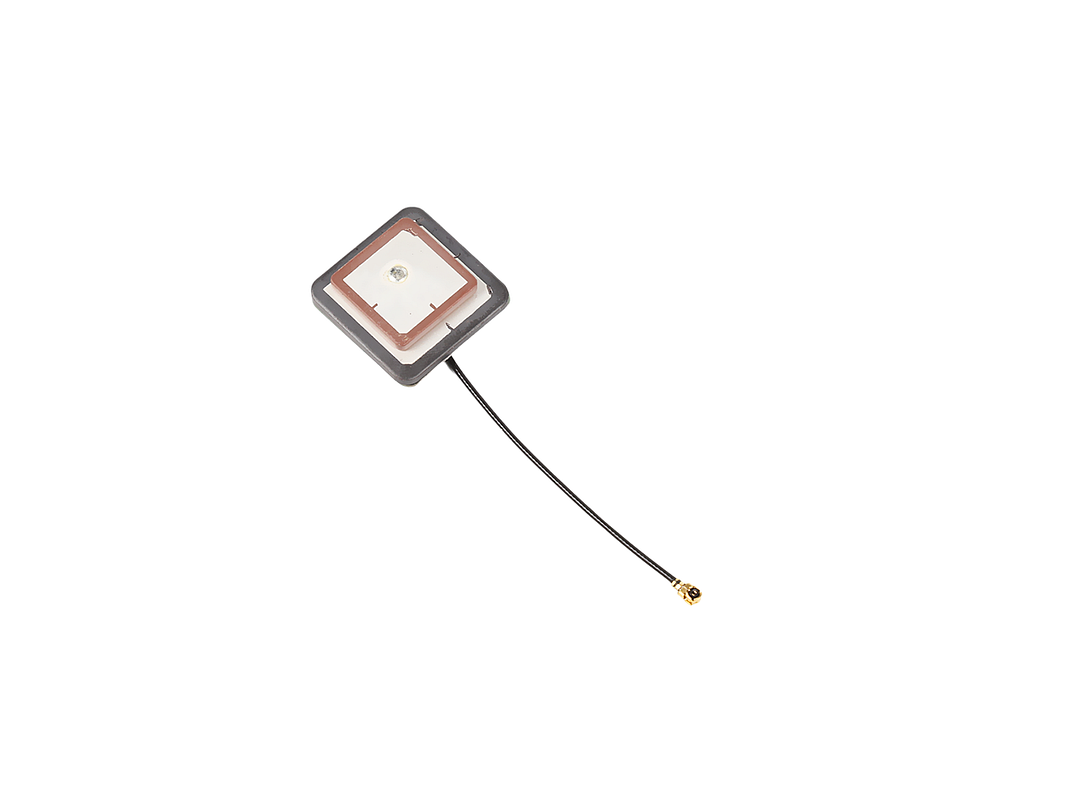

This is a high-efficiency ceramic antenna with the characteristics of light weight, low noise coefficient, low axial ratio, and high gain.
Suitable for: shared bicycles, drones, scooters, trackers, anti-theft devices, portable terminals, in car mobile terminals, various GPS modules OEM and GSM GPRS communication modules.
Functional characteristics
|
|
|
|
Sensitive reception：With the advantage of high sensitivity, this active antenna can significantly improve the ability to receive weak signals, especially suitable for environments with weak signals. |
Strong anti-interference ability： Excellent anti-interference performance design, able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices. |
Specification parameter
| Passive Electrical Specifications: | |
| Frequency Range: | GPS L5: 1176.45MHz/GPS L1: 1575.42 MHz/Glonass L1:1602MHz |
| Input Impendence: | 50Ω |
| VSWR: | ≤ 3.0 |
| Max Etotal Gain: | GPS L5＞-3 dBi/GPS L1＞-1 dBi |
| Polarization Type: | RHCP |
| LNA Electrical Properties: | |
| Gain: | 19±3 dB |
| Noise Figure: | ＜2.5 dB |
| Output VSWR: | < 2.0 |
| Impedance: | 50Ω |
| Voltage: | VDC2.7–3.3 V |
| Working current: | ≤45mA@3V |
| Mechanical Specifications: | |
| Working Temperature: | -40 °C to +85 °C |
| Antenna Size: | 25 × 25 ×11.9mm |
| Connectors and cables: | IPEX+φ1.13(120 mm,Customizable) |
| Environmental protection: | ROHS |
Application scenarios
