Overview
- High precision GNSS antenna, covers GPS L1/L5、BDS B1/ B2、GLONASS L1
- Ideal for GPS/GNSS signal boosting of the GNSS device or other IoT devices!
- MULTIPLE Applications: Vehicle, Mower, scooter, bike/E-bike's high accuracy position & navigation, Precise GNSS survey etc.

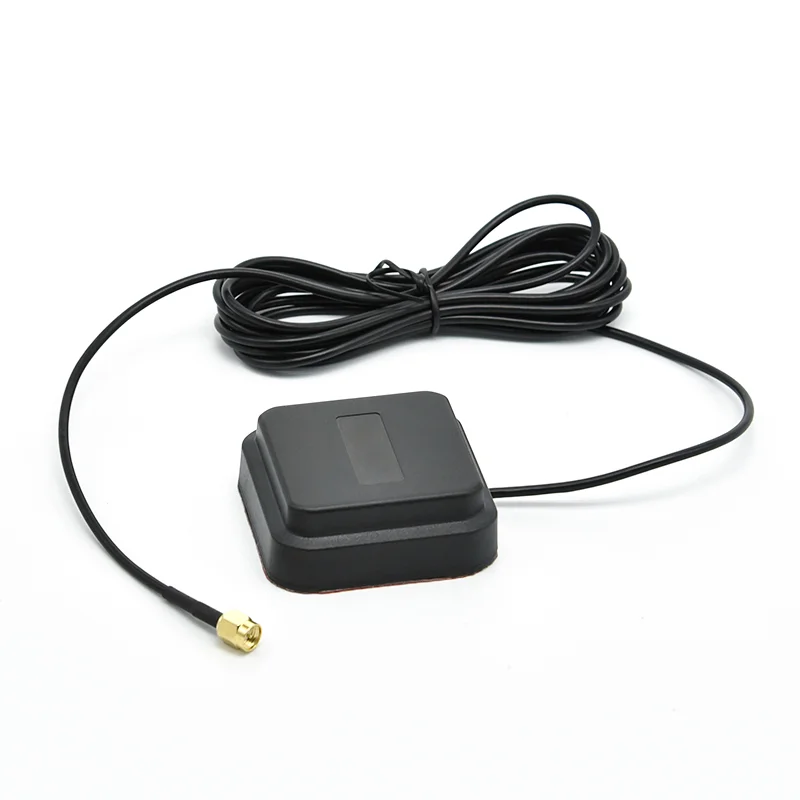

- The antenna comes with a 1/3/5 meters RG174 lead for extreme outdoor applications. Easy to install via both Magnet and Adhesive Mounting methods indoor or outdoor.
Key Features
|
|
|
|
|
The antenna covered covers GPS L1/L5、BDS B1/ B2、GLONASS L1, 3 satellite 5 bands, which can provide a sub-meter level's positioning accuracy |
Antenna has high Gain, with pattern wide beam, with good reception with low elevation signal, insure the normal satellite signal reception even in serious occlusion environment.
|
The Low noise amplifier section adopted pre-filtering scheme to effectively suppress out-of-band interference and improve the reliability of the system. |
Parameters
| Electrical Spec | |
| Frequency Range | 1176.45MHz-1561.098MHz-1575.42MHz |
| Polarization | Right-hand circular polarization |
| Gain(dBi) (Under 200*200mm base board） | Elevation 90°≥4.0 -1dB beam width°≥120° |
| LNA Gain(dBi） | 22±2 |
| Axial Ratio(dBi) | ≤3 |
|
Flatness in Band (dBi) |
±2 |
|
V.S.W.R |
＜2.0 |
|
Noise Figure (dBi) |
＜3.0 |
|
DC Voltage (V) |
3.0-5.0 |
|
Current (mA) |
＜40 |
| Impedance(Ω) | 50 |
| Mechanical Spec |
|
|
Dimensions(mm) |
56.5*61.5*23.0mm |
|
Connector Type 3M(cable length) with |
SMA_J |
|
Operating Temperature (℃) |
-45～+85 |
|
Storage Temperature (℃) |
-55～+85 |
|
Operation Environment |
Outdoor |
|
Ingress Protection |
IP65 |
