Overview

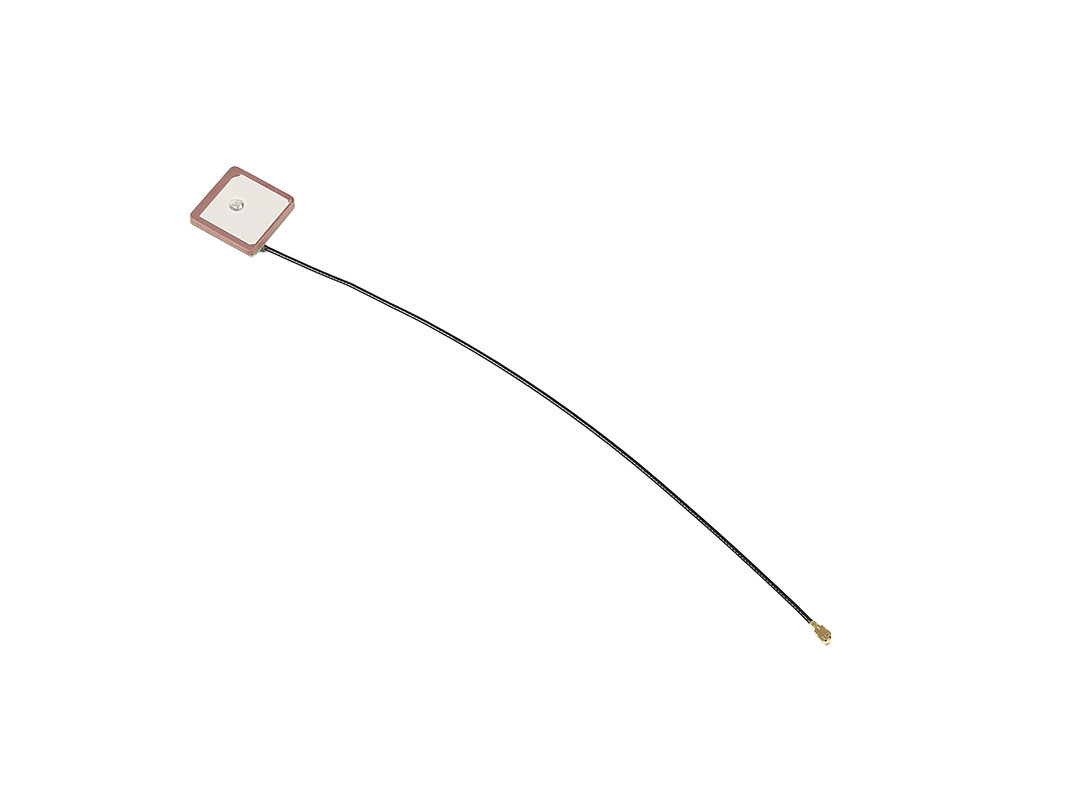

This passive GPS antenna has good performance and can be used in conjunction with geological equipment, measurement equipment applications, etc. to achieve good navigation and positioning. Being able to adapt to complex and ever-changing outdoor environmental conditions is crucial for real-time monitoring of geological disasters.
Suitable for: geological monitoring equipment, surveying and mapping equipment, safety monitoring equipment, tracker equipment, etc.
Key Features
 |
 |
|
Easy to install： Small in size, light in weight, easy to maintain, easy to install, size: 25 x 25 x 7.2mm. |
Strong anti-interference ability： Excellent anti-interference performance design, able to significantly reduce electromagnetic interference generated by the surrounding environment and electronic devices. |
Specification
| Frequency Range: | 1559.05MHz~1605.89MHz |
| Max peak Gain: | 0.5dBi |
| Output VSWR: | ≤2.0 max |
| Output Impedance: | 50Ω |
| Dimensions: | 25mm(L)×25mm(W)×7.2mm(H) |
| Cable: | φ1.13(150mm，Customizable) |
| Connector: | IPEX(Customizable) |
| Type: | Passive |
Application
