Overview

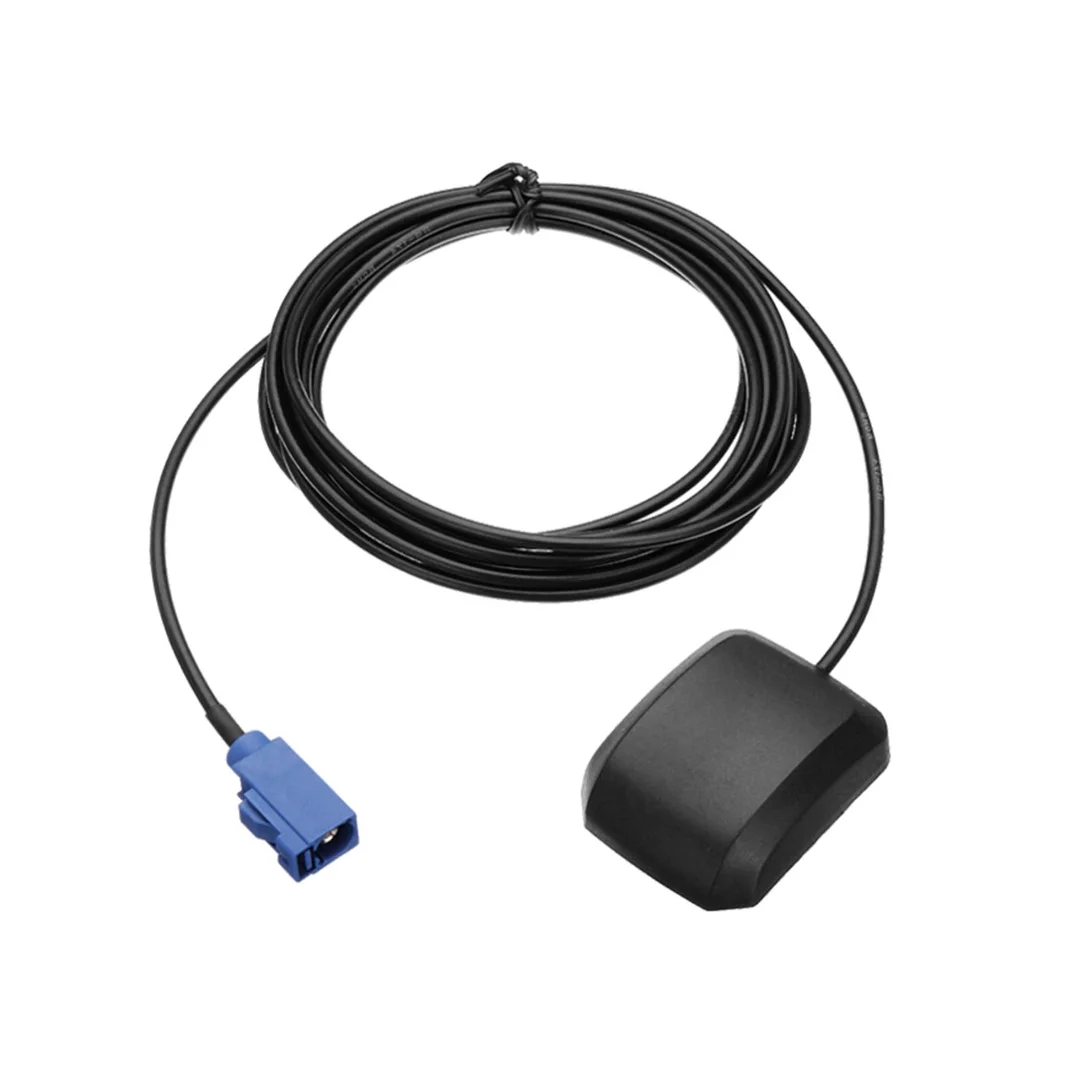

BD+GPS 2-in-1 active antenna, which can quickly locate and accurately navigate in cities with complex environments.
Application: front and rear loading of various models, passenger cars, engineering vehicles, electric vehicles and bicycles;Urban construction, such as Bridges, street lights, voltage measurement, positioning, etc;Engineering machinery.
Key Features
|
|
|
|
| High gain and low power consumption LNA Gain: 28±2dB Voltage Range: DC 3 V ~ 5 V |
Small size and flexible installation Size: 50.3 × 38.4 × 17.1mm Adhesive and magnetic |
Wide application Various models Urban construction |
Parameters
| Passive Electrical Specifications | |
| Frequency Range: | 1561.098-1575.42 MHz |
| Input Impendence: | 50Ω |
| VSWR: | ≤ 2.0 |
| Efficiency: | ≥50% |
| Gain: | 2dBi |
| Polarization : | R.H.C.P |
| Low Noise Amplifier Electrical Specifications. | |
| Frequency Range: | 1561.098-1575.42 MHz |
| LNA Gain: | 28±2dB |
| Noise Figure: | ≤ 2.0 |
| Output VSWR: | ≤ 2.0 |
| Voltage Range: | DC 3 V ~ 5 V |
| Mechanical Specifications | |
| Antenna Size: | 50.3 × 38.4 × 17.1mm |
| Cable Type & Length: | RG174 Black & 3000mm |
| Casing: | ABS |
| Connect Type: | SMA-J（customizable） |
| Working Temperature: | -20°C ~ +70°C |
| Radome Color: | Black |
| Installation method: | Magnet |
| Weight : | 64.6g |
| IP rating: | IP64 |
Application
Vehicle Antenna
IOT Antenna
