Antenna Advantage

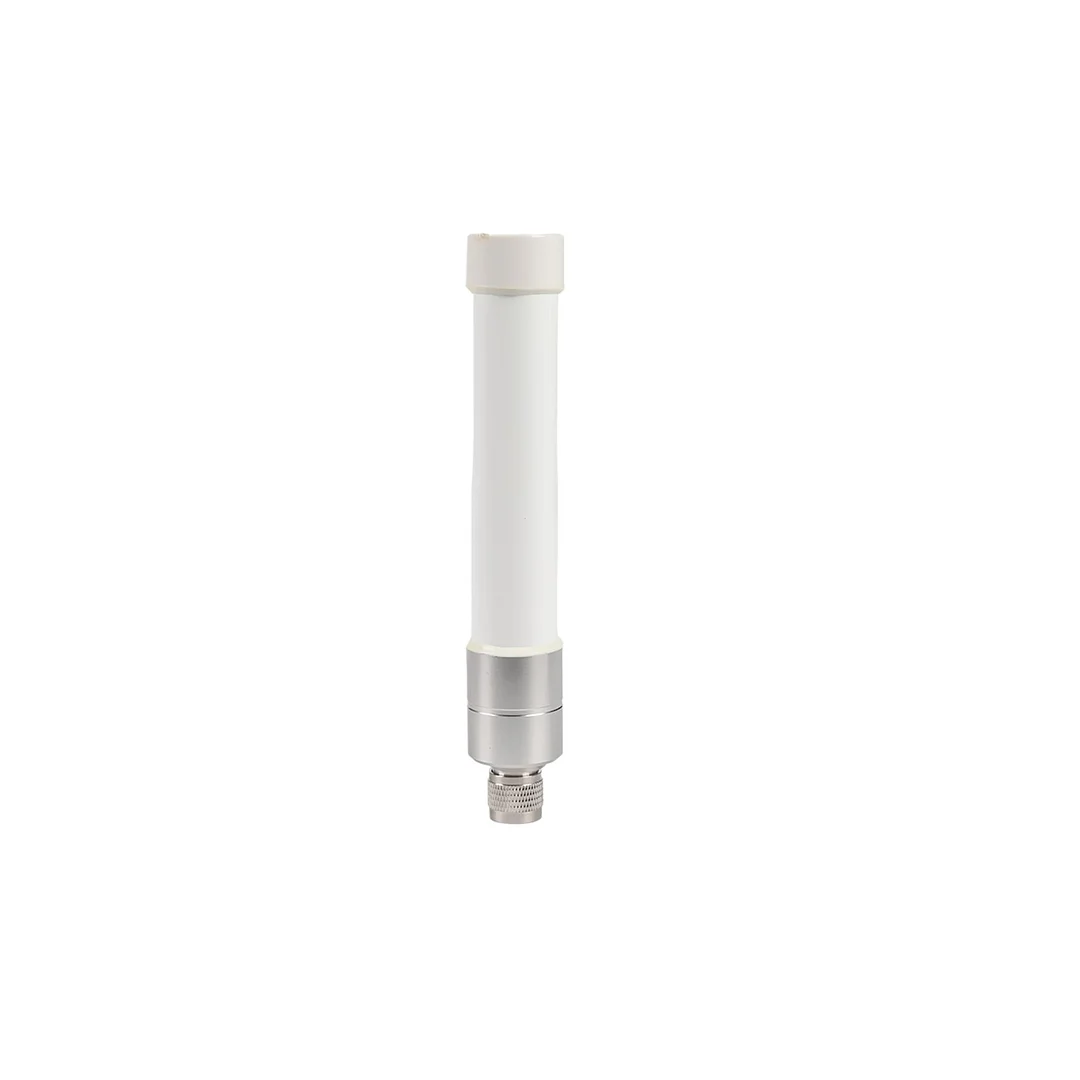

Low standing wave ratio ensures good antenna performance and good coverage. Fiberglass structure, good waterproof performance, suitable for outdoor installation. Especially suitable for urban areas, wide beam width, radiation distance up to 3km.
Key Features
|
|
|
|
|
|
The antenna is strong against drying This reduces signal interference and improves the stability of communication. |
Compact structure
FRP antenna design is more compact, occupy a small space, suitable for installation in a limited space. |
Light and high strength The high strength and lightweight characteristics of FRP make the antenna structure strong but light weight, easy to install and transport, reducing the burden on the support structure. |
Good electrical performance :Fiberglass antennas have excellent electrical insulation and wave permeability (transmittance of more than , which means that there is almost no loss in signal transmission, ensuring the quality of communication.
|
Parameters
|
Model |
V1468-001-A-03 |
V1437-015-A-01 |
V1437-002-B-01 |
V971I-001-A-10 |
V1439-028-A-01 |
|
Frequency |
1550-1575MHz |
1550-1580MHz |
1575.42MHz |
1559MHz~1577MHz |
1559~1577MHz |
|
Gain |
2.0dBi±1.0dBi |
2.3dBi±1dBi |
2.0dB |
仰角Elevation 90°≥2.0dB |
无源增益：2.0dB |
|
Length |
Φ20*156mm |
Φ25*167±3.0mm |
Φ30.5*205mm |
Φ42×56.5mm |
Φ42mm×270mm |
| Impedance |
50Ω |
50Ω |
50Ω |
50Ω |
50Ω |
|
VSW |
＜2.0 |
＜2.0 |
＜2.0 |
＜2.0 |
＜2.0 |
|
Max. Efficienc |
>75% |
>75% |
>75% |
>75% |
>75% |
|
Polarization |
Linear polarization/Vertical |
Linear polarization/Vertical |
Linear polarization/Vertical |
Linear polarization/Vertical |
Linear polarization/Vertical |
|
Radiation pattern |
Omni-directional |
Omni-directional |
Omni-directional |
Omni-directional |
Omni-directional |
|
Connector |
N-J |
N-J |
N-J |
N-J |
N-J |
|
Salt Spray Test |
48H |
48H |
48H |
48H |
48H |
| Operation Temperature |
-30℃~65℃ |
-30℃~65℃ |
-30℃~65℃ |
-30℃~65℃ |
-30℃~65℃ |
|
Storage Temperatur |
-30℃~75℃ |
-30℃~75℃ |
-30℃~75℃ |
-30℃~75℃ |
-30℃~75℃ |
Installation suggestion
we recommend that you install the antenna in an open place, and keep it as vertical as possible. Install the antenna in the highest place outdoors would help you to get a better signal. However, if used indoors, it is recommend to place them near a window.
 |
 |
| Optional connector and accessories are availiable. Please share your requirement with us to get the best offer. | The fiberglass antenna are speciall suitable for outdoor installation. It can work well with your Helium miner hotsport, internet gateway and any long range communication systems and euiqpments. |
Applications
