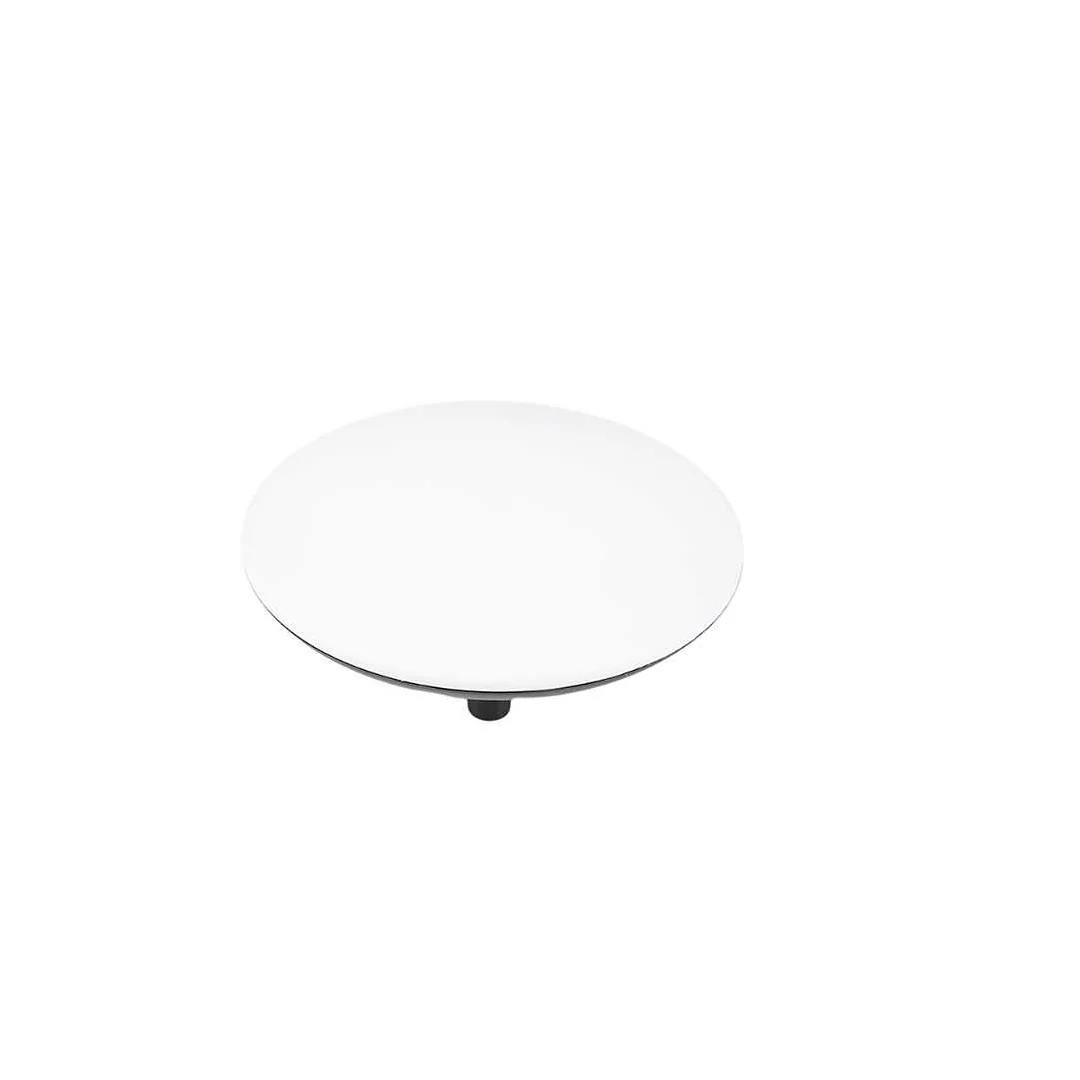

GNSS multi-band measurement antenna

Frequency Range:1559MHz~1605MHz,1207MHz~1278MHz; LNA Gain(dB) : 40±2

$89.90 $98.00

0 sold

Qty 99 in stock

Product Description

Overview

This antenna is a compact seven-frequency antenna supporting GPS L1/L2, BDS B1/B2/B3, and GLONASS L1/L2, designed to meet the demands for multi-system compatibility and precision measurement in GNSS applications. Widely used in geodetic mapping, Marine survey, geological deformation monitoring, micro displacement monitoring, precision positioning, mobile mapping, large construction machinery control and fine agriculture and other fields.

Key Features

Three systems, seven bands ：
GPS L1/L2, BDS B1/B2/B3 and GLONASS L1/L2

Strong anti-interference performance： The pre-filtering scheme is adopted to effectively suppress out-of-band interference

Millimeter positioning accuracy：Multi-feed point design and symmetrical antenna structure are adopted to realize the coincidence of phase center and geometric center, and reduce the influence of antenna on measurement error.

Good reliability：
Lightning and waterproof design.

Paramete

Frequency Range(MHz) :	GPS L1& BD2 B1& GLONASS L1：1559MHz~1605MHz GPS L2& GLONASS L2& BDS B2/B3：1207MHz~1278MHz
Polarization:	RHCP
Gain(dBi) :	elevation Angle 90°≥5, elevation Angle 20°≥0, elevation Angle 10°≥-3
Axial Ratio (dB) :	elevation Angle 90°≤3 elevation Angle 15°≤5
Front to back Power (dB) :	±60°≥15
Phase Center Error (mm) :	<2.0
LNA Gain(dB) :	40±2
V.S.W.R:	<2.0∶1
Noise Figure (dB) :	<2.0
DC Voltage (V) :	3.3 ~18
Operating Current (mA) :	<45
Input Impedance(Ω) :	50
Connector Type ：	TNC-K
Antenna Dimensions (mm) ：	Φ145 x 54.3
The operating Relative Humidity ：	95%
Operating Temperature (° C) ：	-45 to +85
Weight Weight (kg)：	0.4
Storage Temperature (° C) ：	-55 to +85
Connector Type ：	TNC-K
Antenna Dimensions (mm) ：	Φ145 x 54.3
The operating Relative Humidity ：	95%
Operating Temperature (° C) ：	-45 to +85
Weight Weight (kg)：	0.4
Storage Temperature (° C) ：	-55 to +85
