Full frequency satellite repeating system
Product overview
This full-frequency satellite signal repeating system can lead satellite signals from the outdoor to the indoor or places that the satellite signals can't reach . This is a genious system that effectly solve the difficulties of the testing of factory work shop and Lab, the timing of aircraft apron/ Underground Parking/Bus Terminal, and etc.
Why need GPS/GNSS signal Repeating system
 |
 |
 |
 |
| Extend Coverage | Increase Signal Strength | Enhance Indoor Timing/Test | Improved Reliability |
| GNSS repeaters amplify and retransmit full bands satellite signals, effectively extending the coverage area beyond the limitations of direct satellite visibility. | GNSS repeaters amplify the signals, increasing their strength and improving the quality of timing/positioning data, which is important for indoor scenarios | Bringing GNSS signals indoors, enabling accurate indoor timing in facilities like airports,bus terminal, and test of prodution line. | By ensuring a reliable and consistent GNSS signal, these repeating system enhance the dependability of critical applications. |
Parameters

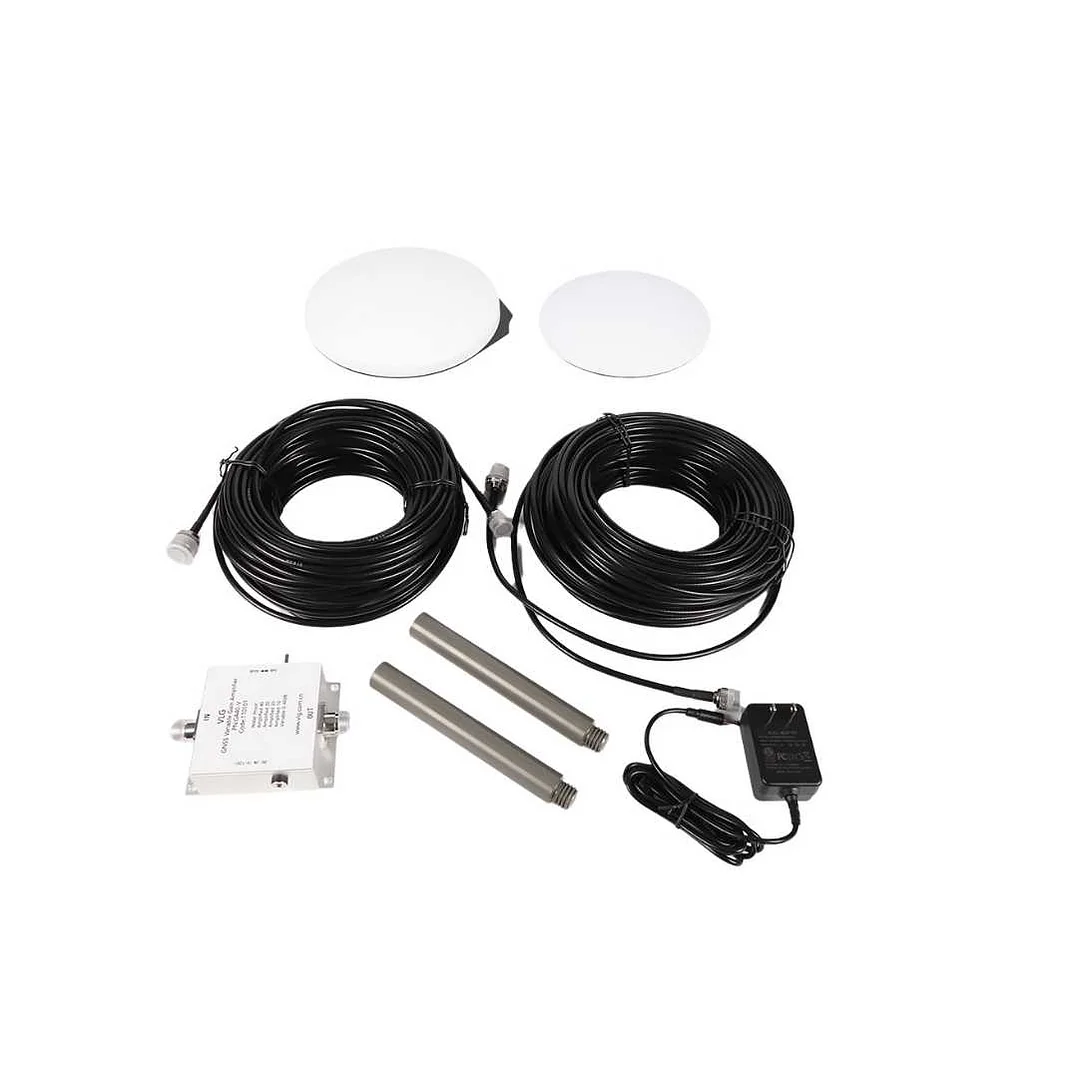

Indoor GPS/GNSS signal repeating system：
|
|
|
|
|
| GPS/GNSS Signal Repeater |
Active GNSS antenna (Outdoor ) |
Passive GNSS antenna (Indoor) |
Kits (Cables & mounting pole) |
|
The is a full GNSS band signal repeater, support frequency of GPS L1/L2/L5、BDS B1/ B2/ B3、GLONASS L1/L2、Galileo E1/E5a/E5b/E6、 L-band. It comes with gain controller, which support adjustion from 0 dB to 30 dB. Power supply: AC220/9V |
Frequency: GPS L1/L2/L5、 BDS B1/ B2/ B3、 GLONASS L1/L2、 Galileo E1/E5a/E5b/E6、 L-band Polarization： RHCP Axial Ratio： ≤3 dB Gain（LNA)： 40±2dB VSWR: < 2.0 Voltage: DC 3.3–18 V Size: Φ165×68.8mm Operate Temp.:-40 °C to +85 °C |
Frequency: GPS L1/L2/L5、 BDS B1/ B2/ B3、 GLONASS L1/L2、 Galileo E1/E5a/E5b/E6、 L-band Polarization： RHCP Axial Ratio： ≤3dB Gain： ≥5dBi VSWR: < 2.0 Size: Φ145*58mm Operate Temp.:-40 °C to +85 °C |
Spares 1xPower Supply: to active the repeater 2xPoles: for mounting the antenna 1x 30m: TNC-J to N-J Cable 1x 20m: TNC-J to N-J Cable (Spares can be customize according customer requirement.) |
Application
1. Prodution line/ Loboratories
Satellite positioning product production lines, satellite positioning mobile phone production lines, satellite positioning laboratories, etc., need to test products, product performance verification and other application environments.
2, Indoor accurate timing
Various occasions that need to achieve indoor precision timing: aviation maintenance, building parking lots, indoor demonstration halls, etc.
