Overview
The 860-930 MHz frequency band covers multiple wireless communication standards and technologies, such as RFID systems in certain regions, LoRa remote communication, and some proprietary wireless data transmission applications. Especially in applications in the Industrial, Scientific, and Medical (ISM) frequency band, it is very common.
Key Features
 |
 |

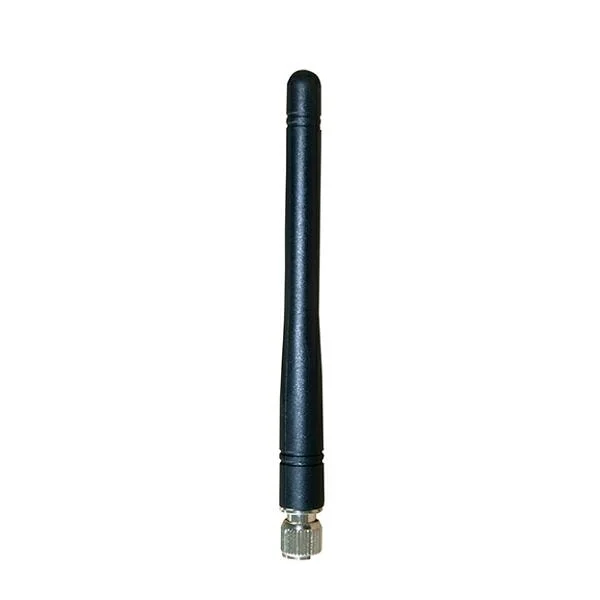

| 860-930MHZ Rubber stick antennas provide omnidirectional radiation mode with a wide coverage range, which means they can uniformly transmit or receive signals in all horizontal directions. This is very useful for applications that require good communication in all directions | Used for massive scenarios in RFID, wireless communication (LORA), and the Internet of Things (IoT). The frequency range of 860-930MHz covers regulations from multiple countries and regions, making it convenient for cross-border applications |
Parameters
| Frequency Range | 860-930MHz |
| Impedance | 50Ω |
| VSWR | ≤2.5 |
| Gain | -2dBi |
| Polarization | Vertical |
| Radiation | Omni |
| Connector | SMA Male Head Male Needle |
| Total length | 116.3±3mm |
