Overview

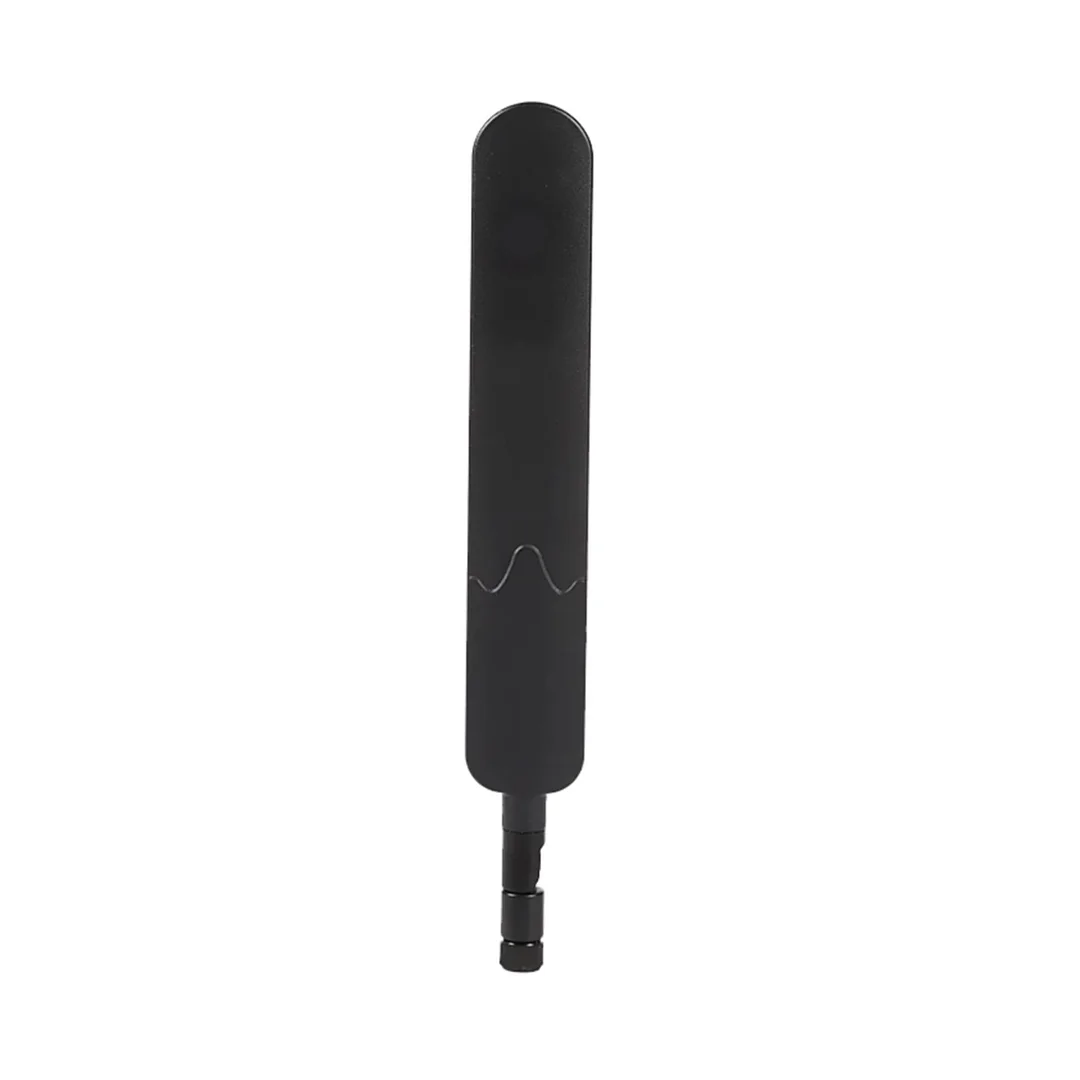

This versatile 5G rubber antenna offers exceptional performance for a wide range of indoor applications. Its multi-band design supports frequencies from 600-6000MHz, ensuring compatibility with 2G, 3G, 4G, 5G, NB-IoT, LoRa, Wi-Fi, and Bluetooth technologies.
Key Features
|
|
|
|
|
| Compact and Flexible Design
Easily integrate with a wide range of indoor devices such as routers, industrial meters and smart appliances. In addition, customizable lengths and SMA-Female connectors (also customizable) can be tailored to suit different applications. |
simple and easy to use Easy to install, users do not need professional knowledge to quickly deploy, reducing installation costs and time |
well-adapted The 6G band glue stick antenna is suitable for a variety of wireless communication devices and systems, including but not limited to the 5GHz UNII/ISM band wireless access system, to meet the needs of modern high-speed data transmission. |
omnidirectional Such antennas usually have the ability to receive and transmit signals in an omnidirectional manner, which means that they can receive signals from all directions without the need to precisely align the signal source, increasing the flexibility of use |
Parameters
| 600-6000Mhz wide band 5G Antenna with good signal for ZTE, Huawei 5G Router, 5G CPE | |
| FrequencyRange | 600-6000MHz |
| Max Gain(dBi) |
1dBi@600-960MHz 2dBi@1700-2690MHz 3dBi@3300-6000MHz |
| VSWR | ≤2.5 |
| Polarization | Verticle |
| Horizontal Beamwidth(0º) | 360º |
| Input Impedance（Ω） | 50Ω |
|
Input connector type |
SMA-J |
| Dimensions¬mm(H /W /D ) | 30×270mm |
Applications
-
IoT Terminals: Enhances connectivity for a wide range of IoT devices.
-
5G CPE: Supports high-speed 5G internet access.
-
Power Systems: Ensures reliable communication in power management applications.
-
Other Uses: Suitable for any application requiring extended 4G/5G cellular connectivity.
