5G+WIFI+GNSS+C-V2X 8-in-1 Antenna

1 / 5

Qty 100 in stock

Product Description

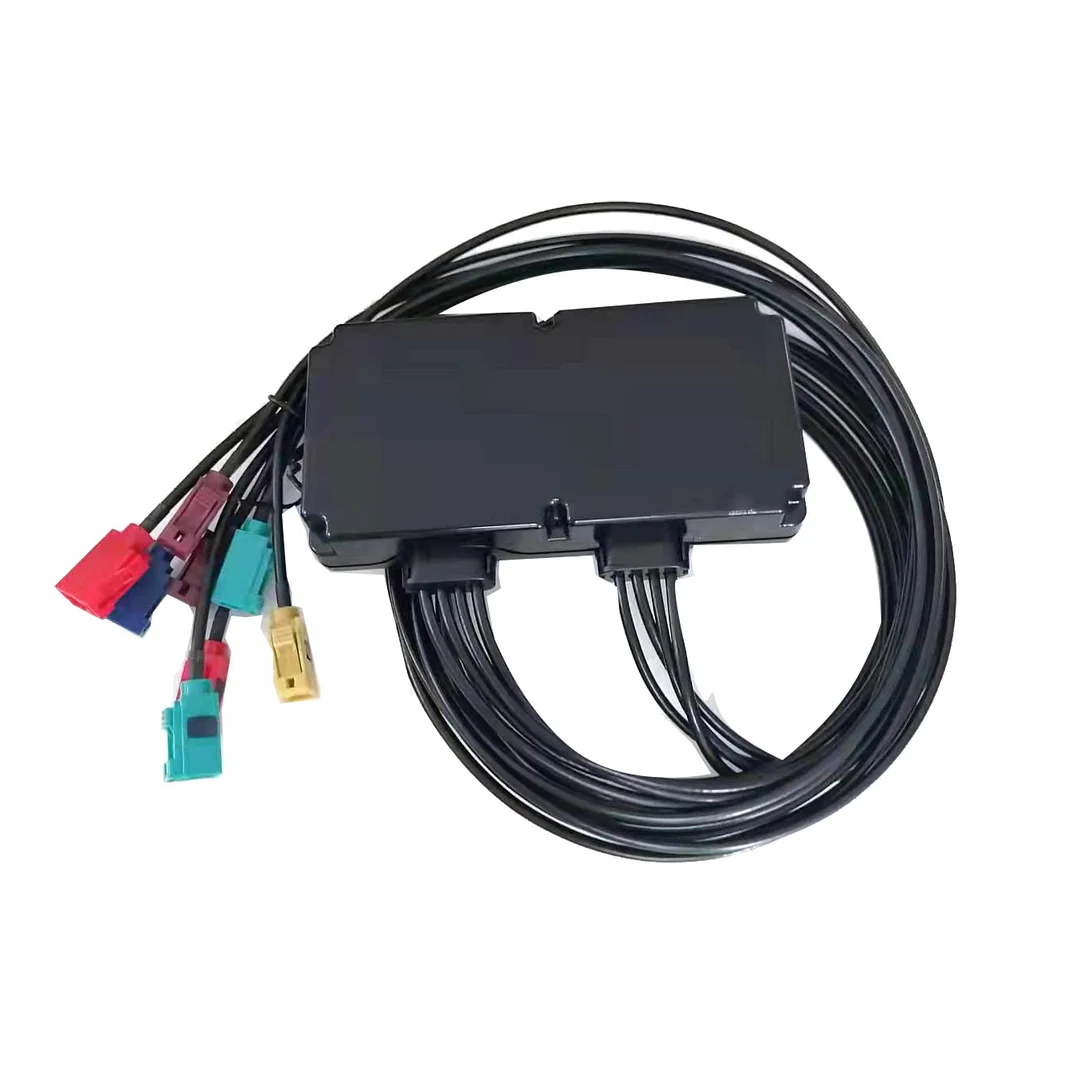

5G+WIFI+GNSS+C-V2X 8-in-1 T-Box Antenna

Product Overview

Highly integrated 8-in-1 Car Antenna with good isolation performance in each antenna, guarantees each antenna can work properly without interruption by the antenna nearby. Except 8in1 solution, 7in1 antenna, 6in1 antenna, 5in1 antenna, 4in1antenna solution also selectable.

Key Features

High performance

amplifiers & filters

Anti-interference

Multi-band Coverage

Good Isolation

This combination antenna has built-in amplifiers and filters to enhance the received signal and reduce noise interferences.

To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices.

This antenna usually supports AM& FM radio reception, V2X signal sending and receiving, and 5G/WIFI network connection. It also provides GNSS functions.

The 8-in-1 T-BOX antenna has a good isolation between antennas, which ensures that the signal of each antenna does not leak or interfere with each other, and improves the overall performance of the antenna.

Specification

Function	5G Antenna Part (Main &Aux)	5G-MIMO Antenna (2x2)	GNSS	WIFI Antenna Part	V2X Antenna Part (2x2)
Frequency Range	700~960/1710~2690/3300~5000MHz	1710~2690/3300~5000MHz	GPS L1/L5、BDS B1	2400~2500/5150~5850MHz	5770-5925MHz
V.S.W.R	＜5/＜3.5/<3	＜3/<3	≤2.0:1	＜1.5/<2.5	≤2.0
lmpedance	50±3Ω	50±3Ω	50Ω	50±3Ω	50±3Ω
Polarization	Linear	Linear	RHCP	Linear	Linear
gain	≥0dBi	≥0dBi	≥0dBi	≥0dBi	≥0dBi
Low noise amplifier characteristics
Working voltage			3V∽5V
Working current			≤30mA@3.3V
Output gain			25±3dB
Output impedance			50±3Ω
Output standing wave ratio			≤2.0:1
Noise factor			L1:≤2dB，L5:≤2.5dB

Environmental Requirements
(1) Operating temperature	-40℃ ~ +85℃
(2) Storage temperature	-40℃ ~ +90℃
(3) Protection grade	IP67 (after vehicle assembly)
