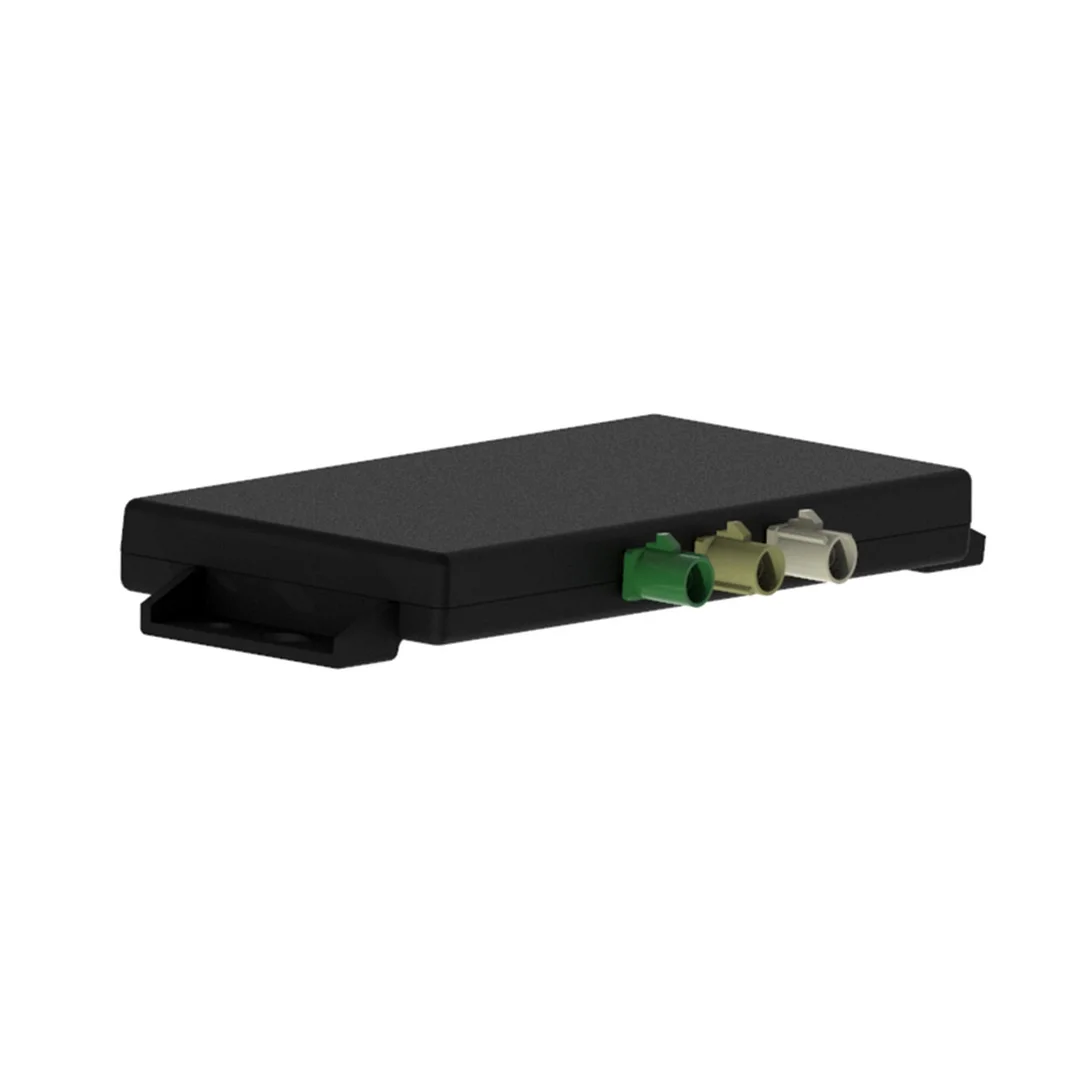

5G/WIFI-Antenna
Product Overview
1. Can customize products
2. Customized design
3. Good isolation, high efficiency.
Key Features
|
|
|
|
|
|
High performance amplifiers & filters |
Anti-interference | Multi-band Coverage | Good Isolation |
| This combination antenna has built-in amplifiers and filters to enhance the received signal and reduce noise interferences. | To ensure stable operation in complex environments, this antenna is specially designed to reduce interference from other wireless devices. | Antennas usually support 5G and WIFI network connection communication. | The 5G+WIFI combination antenna has good isolation between antennas, which ensures that the signals between antennas do not leak and do not interfere with each other, improves the overall performance of the antenna, and reduces the influence of the antenna on the measurement error during communication interaction. |
Specification
| Function | 5G Antenna Part (Main) | 5G Antenna Part (Div) | WIFI Antenna Part |
| Frequency Range | 700~960/1710~2690/3300~5000MHz | 700~960/1710~2690/3300~5000MHz | 2400~2500/5150~5850MHz |
| V.S.W.R | ＜3/＜2.5/<2.5 | ＜3/＜2.5/<2.5 | ＜2/＜2 |
| lmpedance | 50±3Ω | 50±3Ω | 50±3Ω |
| Polarization | Linear |
Linear |
Linear |
| gain | ≥0dBi |
≥0dBi |
≥0dBi |
| Isolation | ≥10dB | ≥10dB | ≥10dB |
| Environmental Requirements | |||
|
(1) Operating temperature |
-40℃ ~ +85℃ | ||
|
(2) Storage temperature |
-40℃ ~ +90℃ | ||
| (3) Protection grade | IP52 (after vehicle assembly) | ||
Applications
Various Car, Caravan, Enginering Vehicles, Agricultural vehicles, and ect.
