Overview

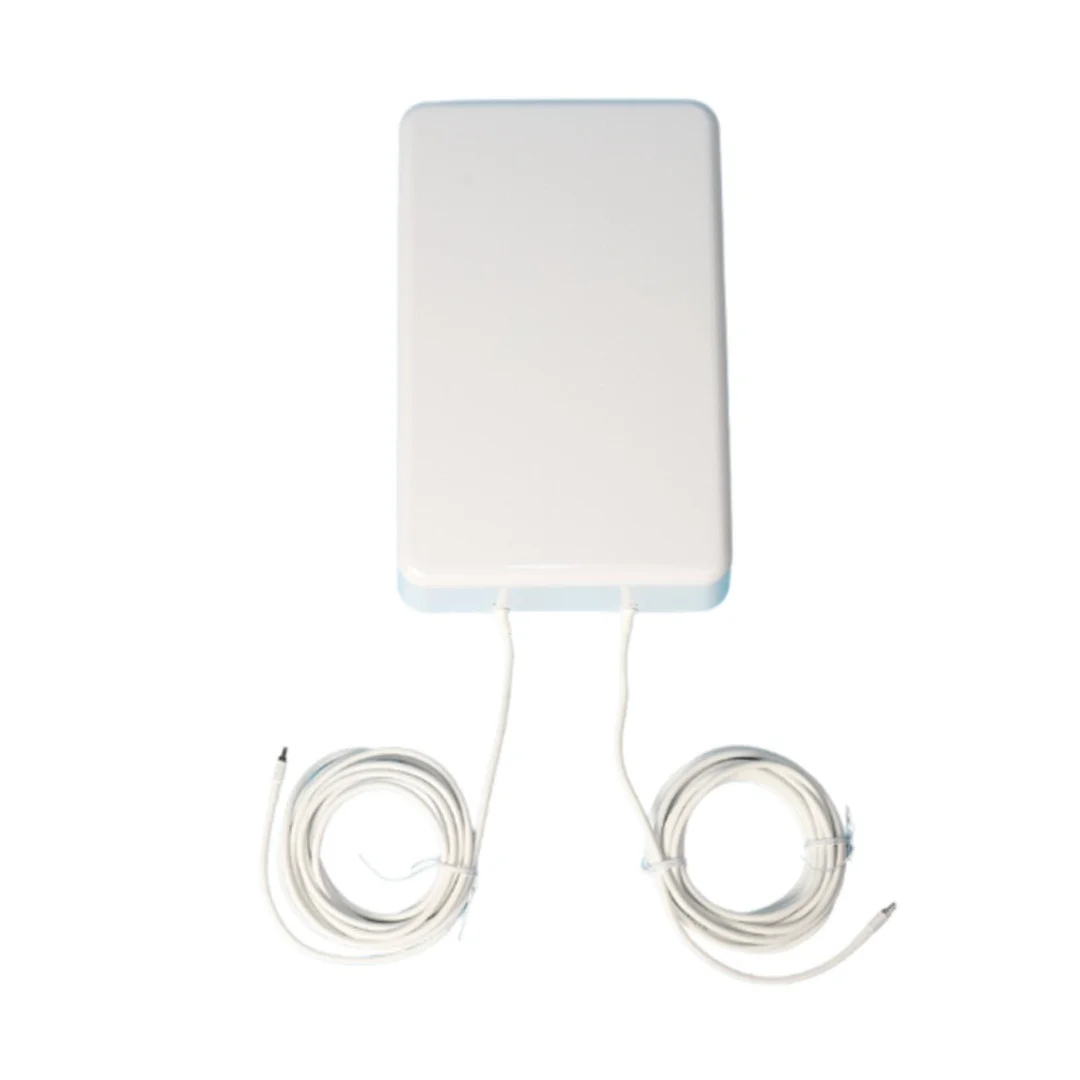

The VLG 600-4200MHz Panel Antenna is a high-gain, wideband solution designed to enhance cellular connectivity for 4G and 5G networks. This weatherproof antenna operates across multiple frequency bands (600-960MHz, 1400-2700MHz, and 3300-4200MHz) to support a variety of cellular applications. Its directional panel design offers increased signal strength in the desired direction, ideal for applications requiring long-range communication or overcoming signal weaknesses.
|
|
|
|
|
Frequency Range (600-4200MHz): Stable product performance, good front and back ratio, narrow sidelobe, beautiful appearance |
Extended Coverage and Improved Reception Waterproof class: IP65 |
Increased Flexibility and Potential Speed Boost Light weight, small size, low profile, easy installation |
Parameters
|
Feature |
Specification |
|
Brand |
VLG |
|
Frequency Range (MHz) |
600-4200 |
|
VSWR |
≤ 2.0 |
|
Impedance (Ω) |
50 |
| Gain（dBi） | 3(dBi) 600-960 MHz |
|
6(dBi) 1400-2690 MHz |
|
|
8(dBi) 3300-4200 MHz |
|
|
Beamwidth (°) |
Horizontal > 60°, Vertical > 30° |
|
Polarization |
±45° Cross Polarization |
|
Lightning Protection |
DC Ground |
|
Dimensions (mm) |
320 x 210 x 80 |
|
Number of Inputs |
2 |
|
Connector Type |
TS-9 |
|
Mount Included |
Yes (Wall/Pole) |
|
Waterproof Rate |
IP65 |
|
Radome Material |
UV-protected Plastic |
|
Operating Temperature (°C) |
-40 to +55 |
