Overview

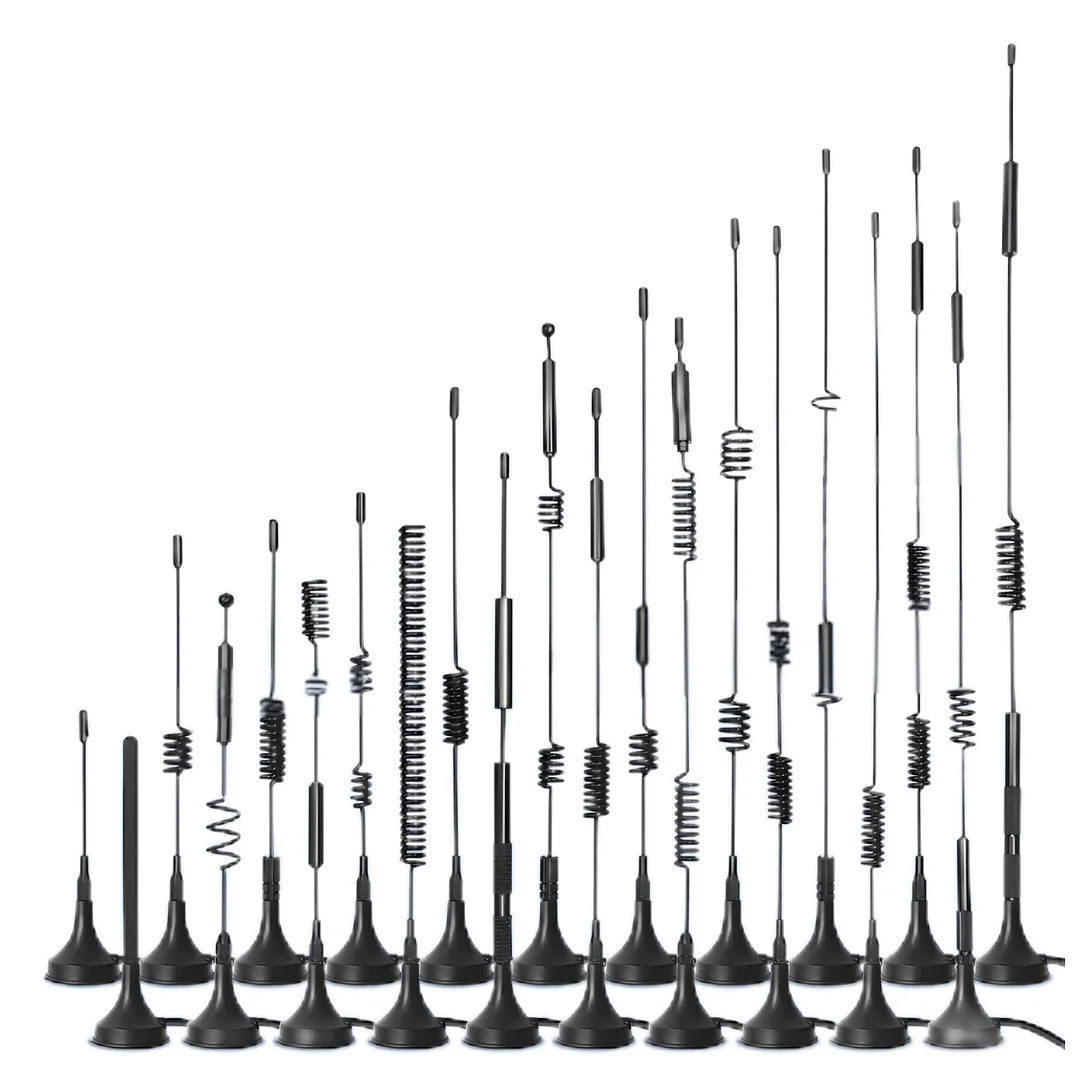

The suction antenna has a magnetic base to enhance cellular reception. It is ideal for connecting with cellular routers and other devices.
Key Features
|
|
|
|
Durable Construction and Easy Installation The antenna features a rugged weatherproof design, built to withstand harsh outdoor environments. The strong magnetic base allows for quick and easy installation on any flat metal surface, making it perfect for situations where permanent mounting is not desired. |
Reliable Signal Performance This antenna boasts a VSWR of ≤ 2.0, indicating excellent impedance matching for efficient signal transmission and reception. The antenna also offers a high gain of , which strengthens the cellular signal for improved connectivity. |
Parameters
| Model | Frequency(MHz) | Gain (dBi) | Size | length |
| V1799-021-A-01 | 433M | -9.5dBi | Φ29.5*142mm | 1.5m |
| V1799-020-A-01 | 470-510M | -9.5dBi | Φ29.5*148mm | 1.5m |
| V1578-039-A-01 | 820-930MHz | 0dBi | Φ29.5*288mm | 1m |
| V1796-002-A-01 | 824-960/1710-1990MHZ |
0.5dBi | Φ29.5*197mm | 3m |
| V1535-007-A-02 | 806-960/1710-2690 MHz | 0dBi/2.0dBi | Φ29.5*301mm | 3m |
| V1545-002-A-01 | 824-960/1710 -2690MHz |
2.0dBi /5.0dBi | Φ45*291mm | 3m |
| V1701-004-A-01 | 824-960/1710-2690MHz |
-1.81dBi/-1.49dBi | Φ 32 *316.5mm | 3m |
| V1194-117-A-01 | 2400-2500MHz/5150-5850MHz | 1.5dBi / 2.5dBi | Φ45 x 285mm | 3m |
