Overview

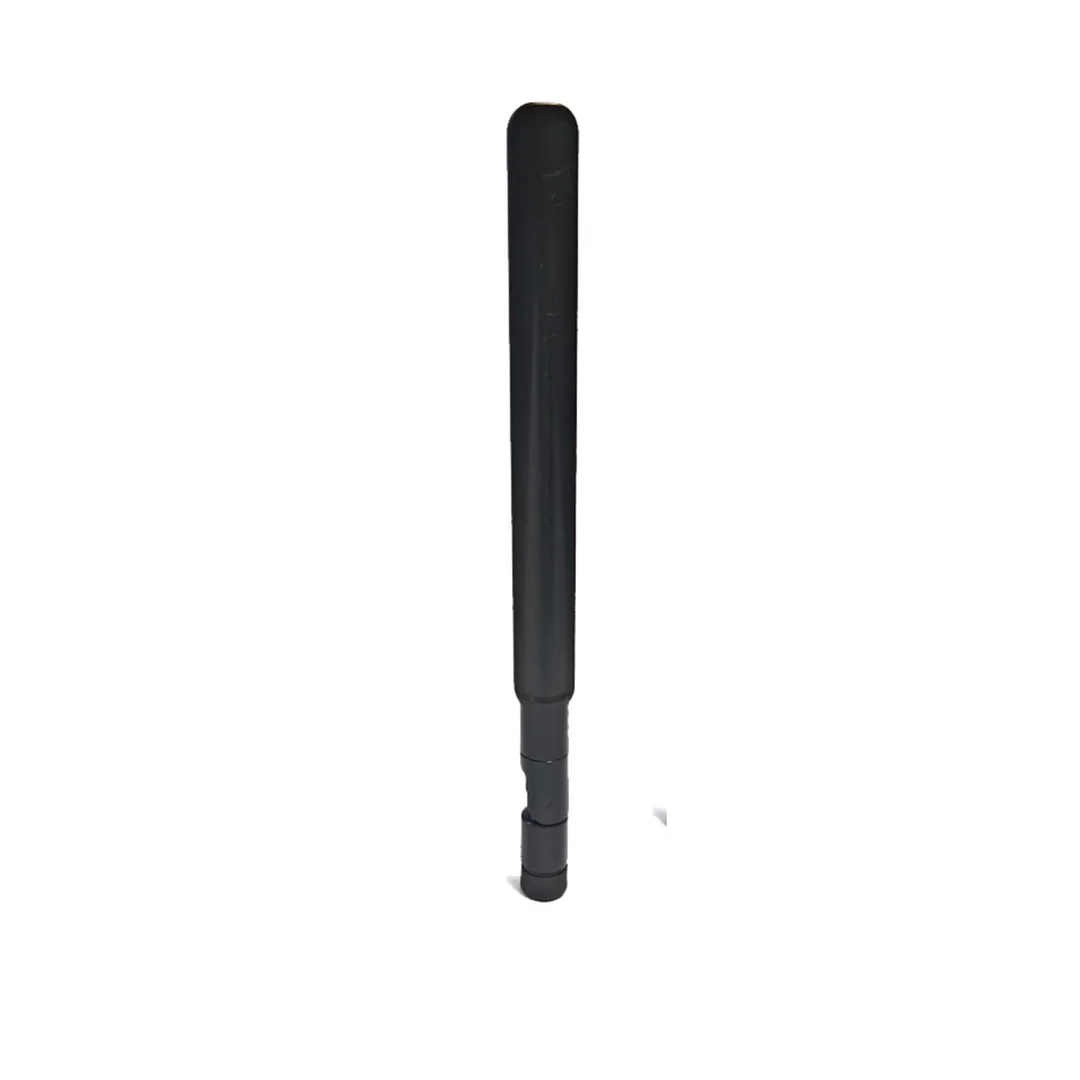

This versatile 5G rubber antenna offers exceptional performance for a wide range of indoor applications. Its multi-band design supports frequencies from 690-960MHz, 1710-2690MHz, and 3300-5000MHz, ensuring compatibility with 2G, 3G, 4G, 5G, NB-IoT, LoRa, Wi-Fi, and Bluetooth technologies.
Key Features
 |
 |
|
Compact and Flexible Design It is easy to integrate various indoor devices such as routers, industrial meters and smart appliances. In addition, the customizable length and SMA-female connectors (which are also customizable) allow tailoring to suit different applications. |
Reliable Signal Enhancement Effectively improves signal reception in its coverage area, making it ideal for indoor applications |
Parameters
|
Parameter |
4G/5G |
WiFi |
|||
|
Frequency |
690-960MHz |
1710-2690MHz |
3300-5000MHz |
2400-2500MHz | 5150-5850MHz |
|
Impedance |
50Ω |
||||
|
VSWR |
＜6.5 |
＜3.5 |
＜3.5 |
＜3.5 |
＜3.5 |
|
Gain |
>-3.9dBi |
>-2.0dBi |
>-2.7dBi |
5dBi |
5dBi |
|
Max. Efficiency |
>23% |
>21% |
>23% |
>23% |
>23% |
|
Polarization |
Linear polarization/Vertical |
||||
|
Radiation pattern |
Omni-directional |
||||
|
Connector |
SMA-J |
||||
|
Mechanical Parameter |
|||||
|
Length |
196.2mm |
||||
|
Salt Spray Test |
48H |
||||
|
Environment Parameter |
|||||
|
Operation Temperature |
-20℃~65℃ |
||||
|
Storage Temperature |
-20℃~75℃ |
||||
Applications
-
Ideal for indoor cellular signal enhancement in routers, industrial meters, and smart home devices.
-
Supports various technologies like 2G, 3G, 4G, 5G, NB-IoT, LoRa, Wi-Fi, and Bluetooth.
-
Compact and flexible design for easy integration.
-
Customizable options for length and connector type.
![]()
![]()
![]()
![]()
![]()
