EV Car Charging Pile 5-in-1 Antenna (4G/LTE/Wifi/BLE/GNSS)

  Product Overview

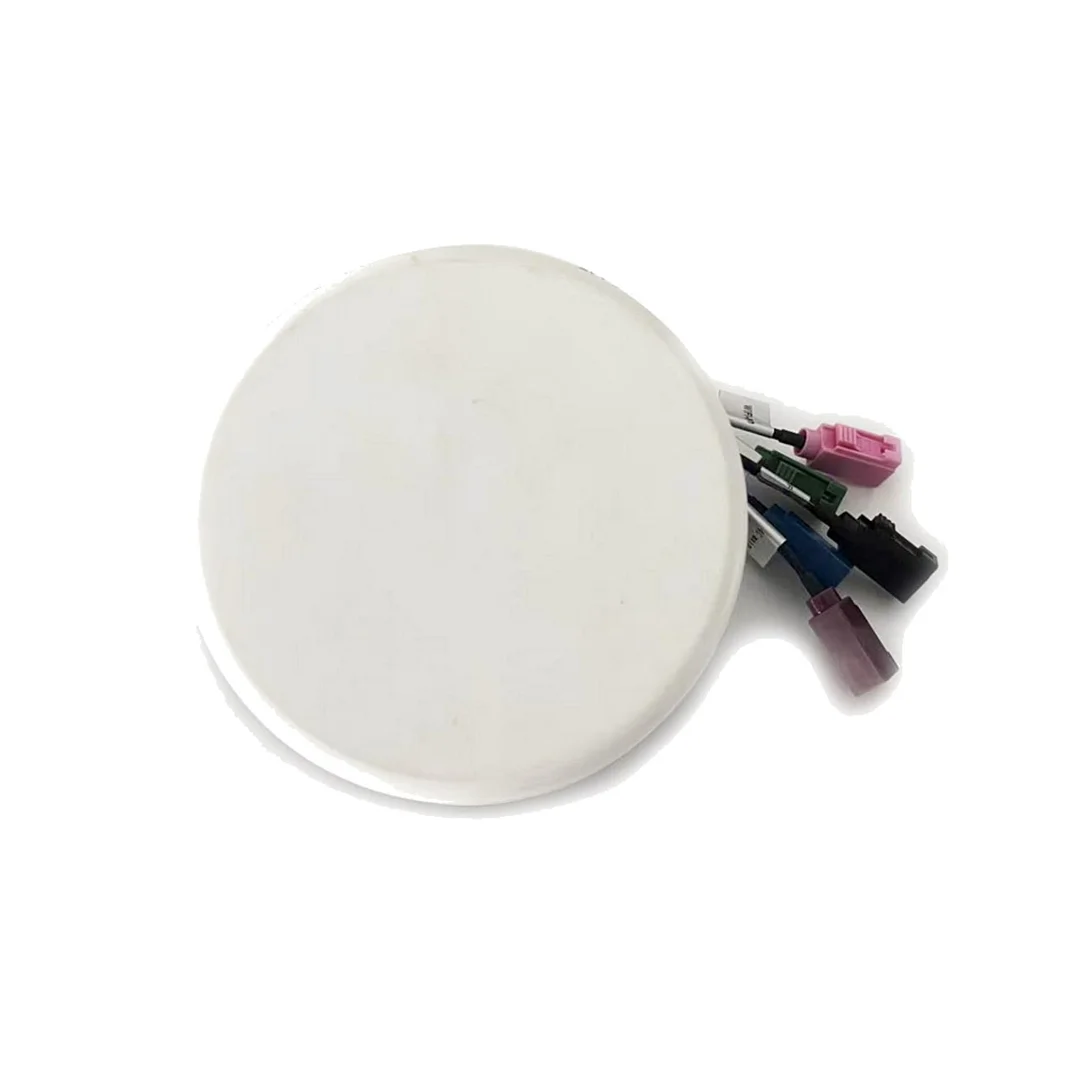

   This multi-antenna combines 5 different powerful antennas in one elegant round shape casing. Two (Main & Div) 3G / 4G antenna for data connection, covering the frequency bands 700-960MHz and 1710-2690MHz. Another two antenna are one Dual band (2.4/5.8GHZ) WiFi antenna and one 2.4G Bluetooth 5. The fifth is an active GPS / GLONASS antenna.

 Key Features

Easy installation & Maintenance	IP67 protection	High integration	Wide applicability
The antenna is designed to work with various GND plane sizes or in free space for ease of integration with connection via 4 customizable length cable & connector.	This screw mount omnidirectional antenna is easy to install with maximum durability with its IP67 enclosure.	This antenna supports multiple functions of cellular, Wi-Fi, Bluetooth and GNSS. Through a single antenna to achieve multiple communication requirements, simplifying device design, reducing installation space and cost, and improving overall performance and stability of the device.	This multifunctional combination antenna is suitable for a variety of scenarios, such as transportation, industry, etc., and can adapt to different wireless technology needs to provide the required connection for customer equipment.

Specification

                                                                                                                Applications

• Private Vehicles, Campers, Caravans, Motorhomes

• Public Vehicles, Trucks, Tractors, Industrial Vehicles

• Installations on ceilings, equipment cabinets or machines

• M2M (Machine to Machine) and other IoT (Internet of Things) applications
