Product Overview

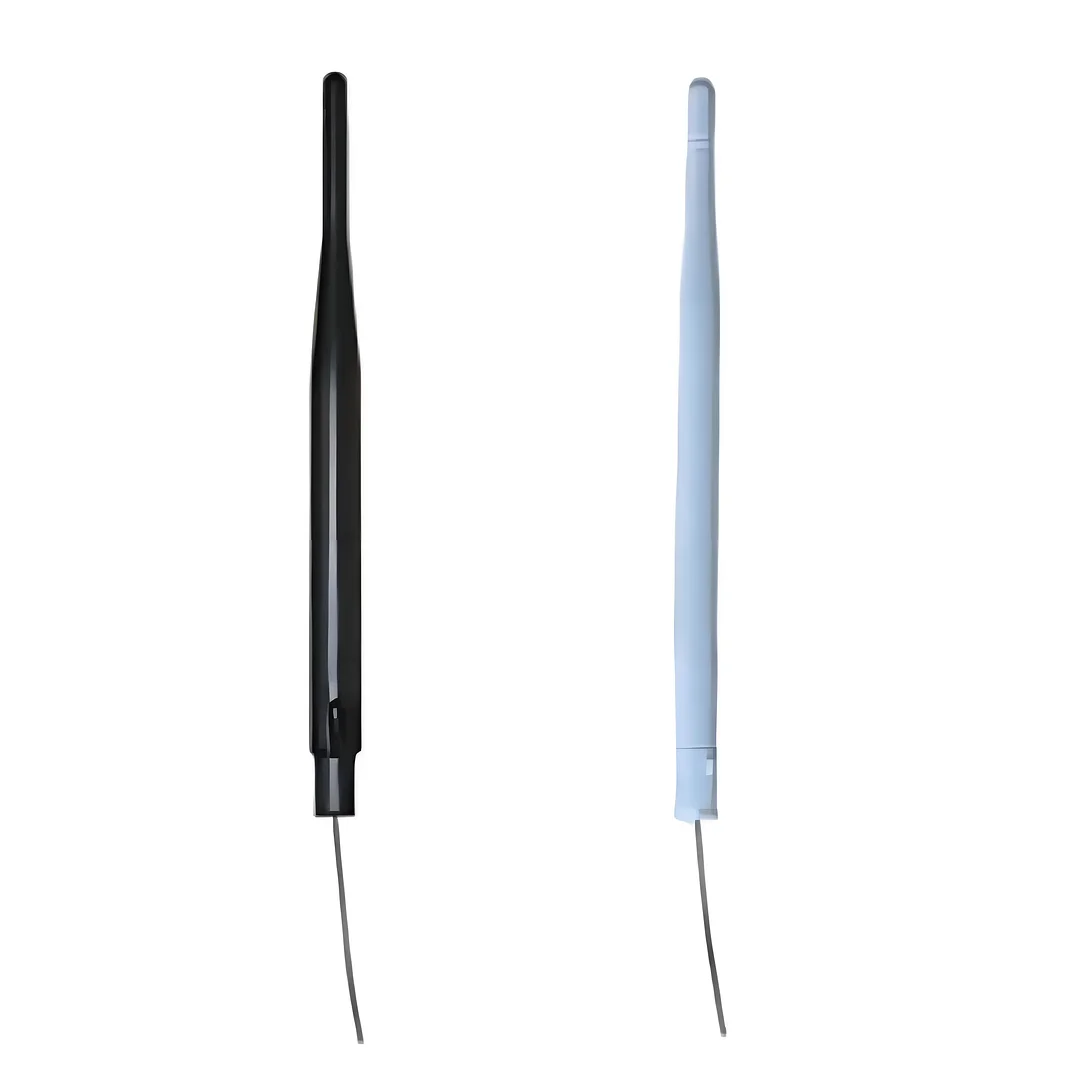

WiFi stick antennas, as an innovative wireless communication solution, are gradually changing our way of life. Its unique design and excellent performance make wireless network connections more stable and efficient. Whether it's at home, in the office, or in public places, WiFi stick antennas can provide excellent network coverage, allowing people to enjoy high-speed and stable network services anytime, anywhere.
Key Features
 |
 |
 |
| Business network | Strong directionality | Easy to install |
| In the business network, WiFi stick antennas can be used to enhance the signal of wireless access points, improve the coverage and stability of wireless networks, and meet the needs of commercial users for high-speed and stable wireless networks. |
WiFi stick antennas have strong directionality, which can concentrate wireless signals in one direction, thereby improving signal transmission distance and penetration ability. |
The installation of the WiFi stick antenna is very simple, just plug it into the antenna interface of the device. |
Parameters
| Frequency Range | 2400-2500MHz | 5150-5850MHz |
| Impedance | 50Ω | 50Ω |
| VSWR | ≤2.0 | ≤2.0 |
| Gain | 4.0dBi | 4.0dBi |
| Polarization | Linear polarization/Vertical | Linear polarization/Vertical |
| Radiation | Omni | Omni |
| Connector | Cable (with IPEX connect） | Cable (with IPEX connect） |
| Length | 190±3mm | 190±3mm |
